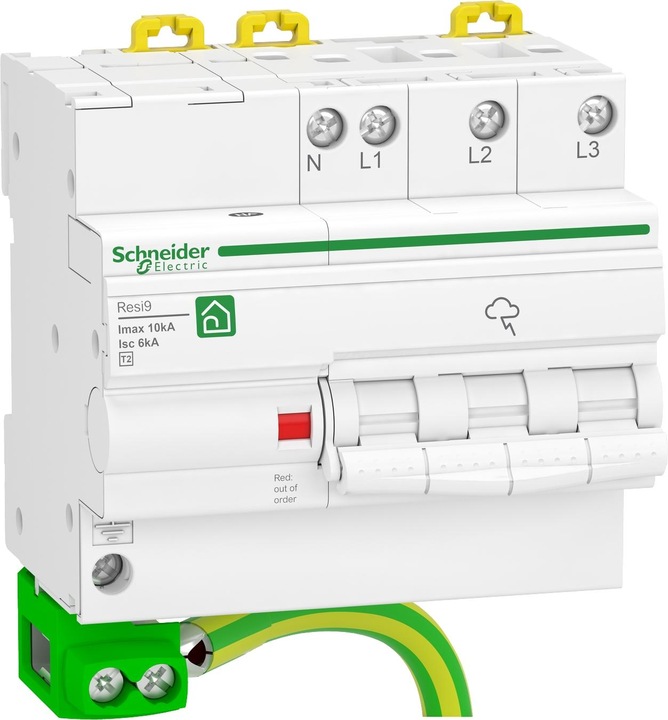

Schneider Electric R9L16710 Resi9 3P+N Type 2 Imax 10kA Disconnect switch. Surge arrester
Product details
The R9L16710 Resi9 surge arrester from Schneider Electric offers effective protection against surges in electrical installations. This surge arrester is designed for use in three-phase systems with a neutral conductor and meets the requirements of test class Type 2 according to EN 61643-11. With a maximum discharge current of 10 kA and a voltage protection level of 1500 V, it ensures reliable protection against transient overvoltages that can be caused by lightning strikes or other disturbances in the power grid. The arrester is rated for an operating voltage of 400 V AC and comes with a connection cable for grounding. Installation is straightforward on a DIN rail, making it easy to set up in distribution cabinets. With its IP20 protection rating, it is suitable for use in dry indoor environments.
- Integrated pre-fuse (circuit breaker) for additional protection
- Easy installation on DIN rail
- Suitable for three-phase systems with neutral conductor
- Maximum lightning impulse current of 10 kA
- Manufactured in Belgium with a commitment to sustainability (RE100).
