Schneider Electric Pushbutton Rt Zb6ca4

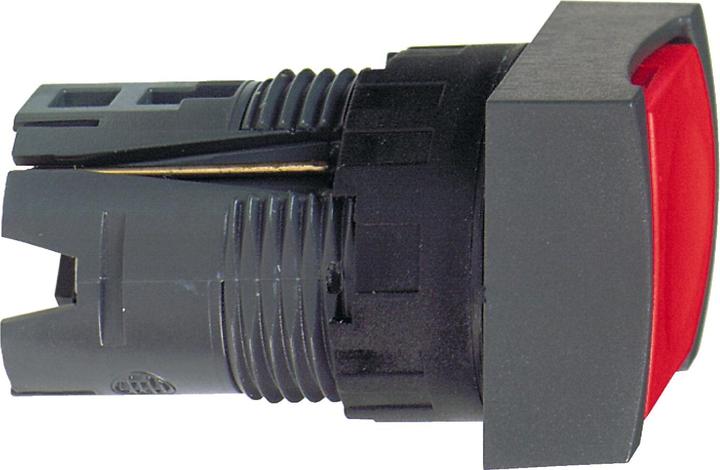

Schneider Electric Push Button Red ZB6CA4

Manufacturer: Schneider Electric
Description: Push Button Red
Type: ZB6CA4
Button Color: Red
Number of Command Positions: 1
Lens Shape: Square
Hole Diameter: 16.2 mm
Opening Width: 0 mm
Opening Height: 0 mm
Button Shape: Flat
Suitable for Lighting: No
With Protective Cover: No
Labeled: No
Switch Function Latching: No
Momentary: Yes
With Front Ring: Yes
Material of Front Ring: Plastic
Front Ring Color: Black
Protection Class (IP), Front Side: IP65
Protection Class (NEMA), Front Side: Other

Additional Details:
Front element for Harmony ZB6 push button. Plastic bezel. Dimensions (WxHxD) 18x18x33 mm, Mounting Diameter 16 mm, Weight 0.016 kg. Square head shape. With high vibration resistance and chemical resistance, ambient temperature -40 to +70 degrees C. The plastic program with a 16 mm installation size combines easy installation with great flexibility in minimal space requirements. Certifications according to CCC, UL, CSA, GOST. Product standards according to JIS C 852, EN/IEC 60947-5-1, JIS C 4520, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-5, UL 508.
