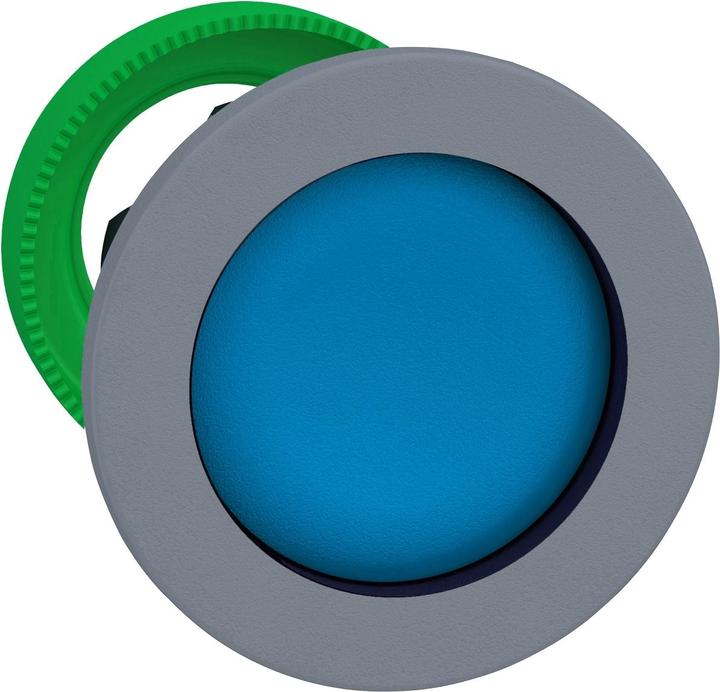

Schneider Electric Pushbutton, front, plastic, momentary, ZB5FA6C0

Schneider Electric pushbutton, front ZB5FA6C0

Manufacturer: Schneider Electric
Description: Pushbutton, front blue, 30mm, in grey
Type: ZB5FA6C0
Colour of knob: Blue
Number of command positions: 1
Design of lens: Round
Hole diameter: 31 mm
Design of knob: Flat
Suitable for lighting: No
With protective cover: No
Labelling: Yes
Switching function latching: No
Keying: Yes
With front ring: Yes
Material of front ring: Plastic
Colour of front ring: Black
Protection class (IP), front: IP66
Protection class (NEMA), front: 4X

Further details: This pushbutton is made of plastic as a front element with a 30mm mounting dimension, part of the Harmony XB5F series for flat mounting. The colour of the pushbutton is blue, and the actuation function is without detent. The colour of the outer ring is grey. The modular Harmony series with a 30mm mounting dimension combines easy installation, efficiency, modern design, and flexibility with high robustness. It has IP protection classes up to IP69K and can operate in ambient temperatures from -40°C to +70°C.

Product standards: EN/IEC 60947-5-1, EN/IEC 60947-5-4, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C 4520.
Certifications: DNV, GL, UL listed, RINA, BV, CSA, LROS (Lloyds register of shipping).
EAN: 3606489771300.
