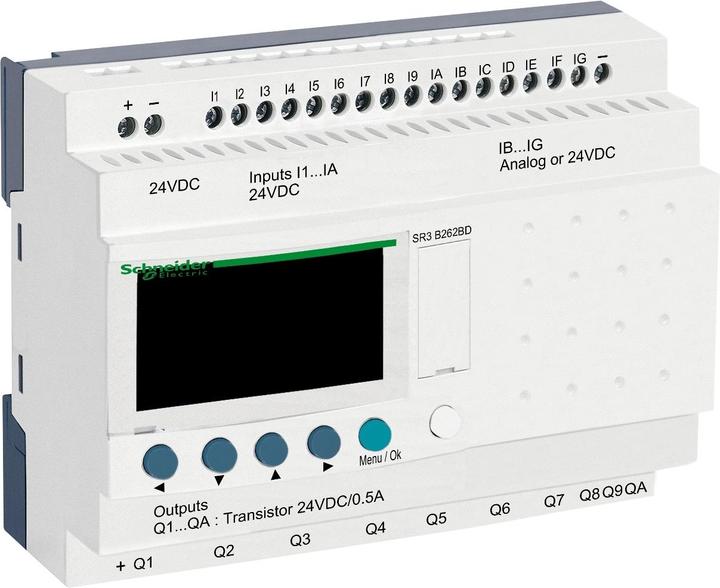

Schneider Electric Process module ZELIO

Series: Zelio Logic
Supply Voltage: 24 V dc
Output Type: Transistor
Number of Outputs: 10
Input Type: Analog, discrete
Number of Inputs: 16
Mounting Type: DIN rail
Width: 107.6 mm
Length: 124.6 mm
Dimensions: 124.6 x 107.6 x 59.5 mm
Programming Languages Used: FBD, Ladder Diagram, SFC
Module Type: Logic Control Module
Maximum Operating Temperature: +55 °C

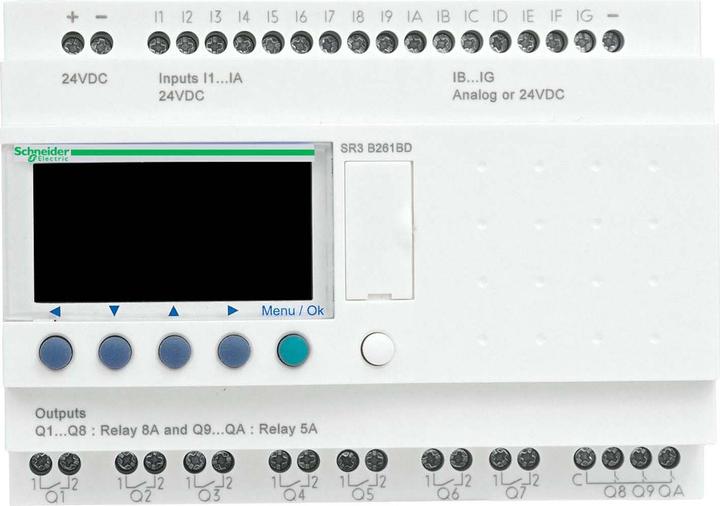

Zelio Logic Smart Relays – Modular. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays come with 10 or 26 I/O depending on the model and can have up to 40 extended I/O. Programming and Software. Simple programming can be done independently using the buttons located on the front of the relay or on a PC using Zelio Soft software. Programming via a PC can be done either using Ladder Language or in Function Block Diagram (FBD) language. Memory. The Zelio Logic Smart Relays feature memory buffering that allows programs to be copied to other Smart Relays. The memory enables the storage of a backup copy of the program before replacing the product, and for relays without a display or buttons, the copy program is automatically transferred upon power-up. LCD display with backlighting; DIN rail or panel mounting; includes real-time clock; 4 analog output channels; 10 ms cycle time; 10 years buffering (EEPROM memory); screw terminal connections; protection class IP20.
