Schneider Electric Multiple pushbutton

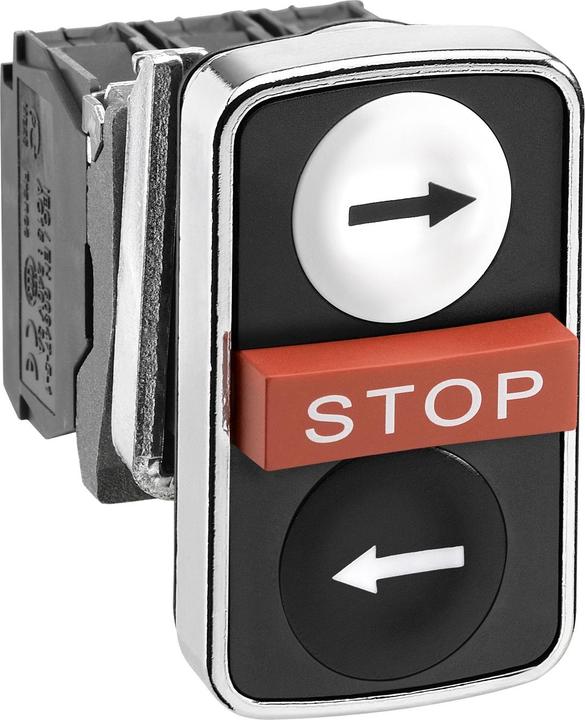

Schneider Electric Triple Push Button XB4BA711237

Manufacturer: Schneider Electric
Designation: Triple Push Button ws 1S+1Ö+1S
Type: XB4BA711237
Number of Command Positions: 3
Button Design: high
Button Color: black/white
Lens Shape: rectangular
Hole Diameter: 22.5 mm
Suitable for Lighting: no
Latch Function: no
Push Button: yes
Number of Contacts as Normally Closed: 2
Number of Contacts as Normally Open: 1
Electrical Connection Type: screw connection
With Front Ring: yes
Material of Front Ring: metal
Front Ring Color: chrome
Protection Class (IP): other
Protection Class (NEMA): 4X

Schneider Electric Triple Push Button XB4BA711237: additional details
The Harmony XB4 series made of metal offers a wide range of 22mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop switches. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements and optionally for 30mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This triple push button features 2 normally closed contacts and 1 normally open contact and is labeled. Installed in a 22mm hole, the device is connected via screw terminals on the back of the product. Due to the variety of existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information on material contents, environmental impacts, and circular economy that support your sustainability goals.
