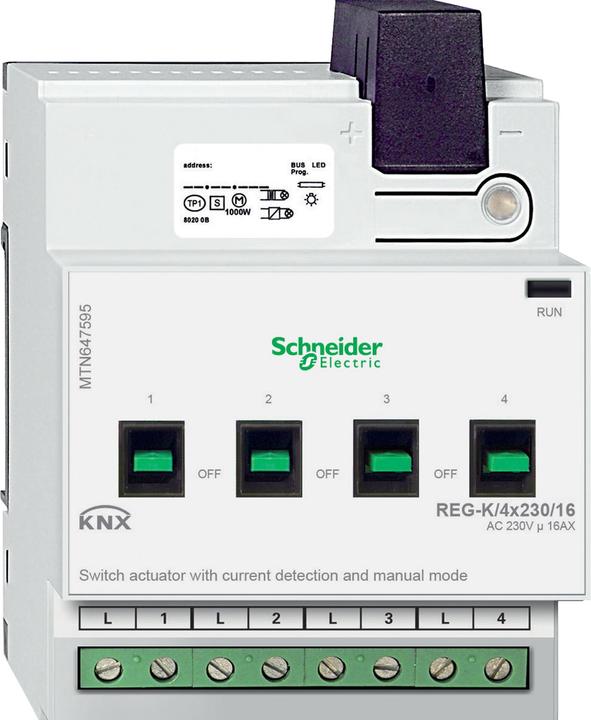

Schneider Electric MTN647595

Switch actuator
Delivered between Fri, 4.12. and Sat, 12.12.6 pieces in stock at supplier
free shipping

In Detail

Schneider Electric Switching Actuator MTN647595

Manufacturer: Schneider Electric
Designation: Switching Actuator REG-K/4x230/16
Type: MTN647595
KNX Bus System: yes
KNX Radio Bus System: no
Radio Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Radio: no
Mounting Type: REG
Width in Division Units: 4
Local/Manual Operation: yes
With LED Display: no
Max. Switching Power: 3600 W
Output Power: 3600 W
Suitable for C-Load: yes
Max. Number of Switching Outputs: 4
Max. Switching Current: 16 A
Rated Current: 16 A
Rated Operating Voltage: 230 V
Connectable to Different Phases: yes
With Bus Coupling: yes
Bus Module Removable: no
Modular Expansion Option: no
Protection Class (IP): IP20

The MTN647595 switching actuator allows for independent switching of 4 consumers via contact closures. It features integrated current detection that measures the load current per channel. All 230 V switching outputs can be manually operated with hand switches. It includes an integrated bus coupler. A green LED indicates operational readiness after the application is loaded. The load connection is made via screw terminals. Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus terminal.

Rated Voltage: AC 230 V, 50-60 Hz. DC 12-24 V +/-10%, 0.1-16 A, per switching contact: Switching Current: 16 A, cos Phi 0.6. Detection Accuracy: +/- 8% of the current value (sine) and +/- 100 mA. Frequency: 50/60 Hz for alternating current. Representation: 100 mA. Device Width: 4 TE corresponds to approximately 216 mm. Delivery Includes: With bus terminal and wiring cover. EAN: 3606485100067.
