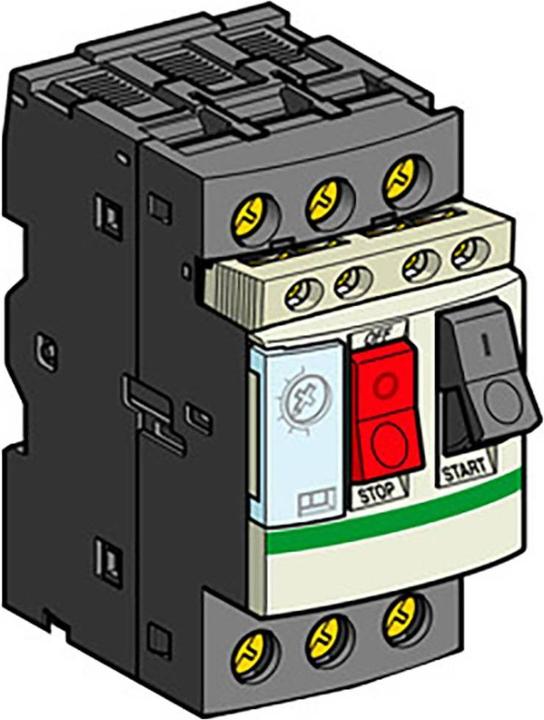

Schneider Electric Motor protection switch GV2ME10
free shipping
Range: TeSys. Connection type: Screw fastening. Series: GV2M. UL and CSA. Motor circuit-breaker - GV2-ME. For use with the TeSys contactor up to 15 kW. Provides short-circuit and overload protection. Can be locked in the off position. Auxiliary contacts can be used to signal switch-off or tripping Screw connection.
Circuit breaker type | Motor protection switch |
Length | 78.20 mm |
Width | 45 mm |
number of poles | 3 |
Mounting type | Stand-alone |
Item number | 9945034 |
Manufacturer | Schneider Electric |
Category | Residual-current device |
Manufacturer no. | GV2ME10 |
Release date | 22.10.2018 |
Colour | Black |
Exact colour description | Black, White |
Circuit breaker type | Motor protection switch |
Mounting type | Stand-alone |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | Sluggish --- |
Rated current | 0.01 A |
Rated voltage | 690 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 690 V |
Residual current (rated differential current) | 100000 A |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 78.20 mm |
Width | 45 mm |
Height | 89 mm |
Weight | 260 g |
Length | 9.40 cm |
Width | 8.50 cm |
Height | 4.70 cm |
Weight | 274 g |
