Name: Miniature circuit breaker 2P circuit breaker
Brand: Schneider Electric
SKU: 12744913
Price: 20.7 CHF
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Schneider Electric

Acti 9 iC60N circuit breaker, 6kA (IEC/EN 60898-1), 10kA (IEC/EN 60947-2). 2-pole, rated current 16A, B-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Spring mechanism for low-wear switching of contacts. Moving insulation cover. Actuation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. With mechanical front-facing fault indication (VisiTrip) to display tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Terminals IP20, moving insulation cover. Double connection terminal from above or below. Easy removal of the individual device when the phase busbar is installed, thanks to the front-accessible fastening element. Trip unit technology - thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series, as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional) - indication of switching position, fault tripping, working current tripping, undervoltage tripping, overvoltage tripping. Color shade RAL 9003. The iC60N circuit breaker meets the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified. Circuit breaker, automatic fuse, MCB, short circuit protection, overload protection, short circuit.

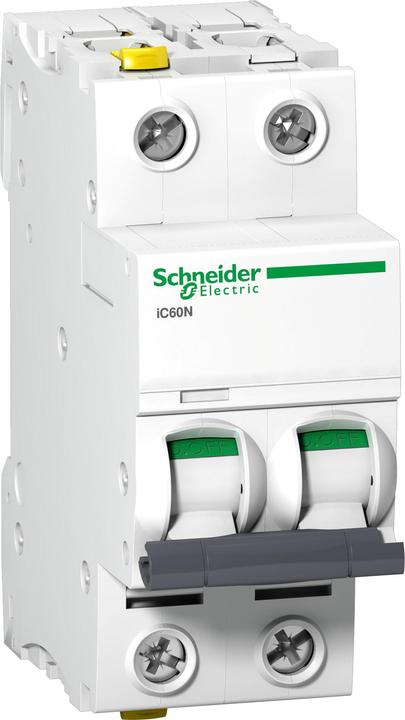

Actual product image Schneider Electric Miniature circuit breaker 2P circuit breaker

Search

Schneider Electric Miniature circuit breaker 2P circuit breaker

CHF30.65

Product details

Compare products

Goes with

Reviews & Ratings

Schneider Electric Miniature circuit breaker 2P circuit breaker

CHF30.65
