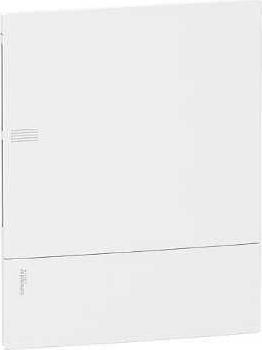

Schneider Electric Mini Pragma, White, 294 mm, 377 mm, 80 mm

Ratings
Delivered between Wed, 25.6. and Fri, 4.7.

Product details

IP40 2 x 12 recessed modular distribution panel Mini Pragma (MIP22212)

Description:
Mini Pragma product range
Product or component type: Enclosure type
Modular enclosure
Number of modules per row: 12
Number of horizontal rows: 2
Front panel type: Solid
Width: 270 mm
Wall height: 353 mm
Wall depth: 18 mm
Insertion depth: 80 mm

Additional parameters:
Enclosure built-in width: 9 mm
Total number of modules: 18
Rated current: 63 A
Busbar type: 35 mm asymmetrical bus
Cable entry: Pre-cut holes
Connections: Protection neutral
Number of terminals: 1
Earthing terminal strip with 16 screw outputs
Distribution block terminals: 2 x 16 mm² for earthing

Enclosure material:
Rear part: Technical plastic
Colour: Door white (RAL 9003)

Working environment standards:
EN 50102
IEC 529
IEC 60439-3
IEC 60670-24
IEC 60695-2-11

Quality labels:
Fire resistance door: 650 °C
IP protection class: IP40
IK protection class: IK07
Ambient temperature for unit operation: -25 to 60 °C

Proposal for sustainable development:
Status: Environmentally friendly product
Green Premium
RoHS compliant
Declaration of conformity by Schneider Electric
REACh: The reference does not contain SVHC above the threshold.

Environmental profile of the product: Available.

Product end of use notes: No specific recycling required.

Key specifications

Protection type (IP code)
IP40
Length
80 mm
Width
270 mm
Height
353 mm
Item number
34372104

General information

Manufacturer
Schneider Electric
Category
Wiring closet technology
Manufacturer no.
MIP22212
Release date
17.5.2023

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
Technical plastic

Distribution cabinet technology Features

Area of use
Inside
Nominal current
63 A
Protection type (IP code)
IP40
number of poles
12
Fuse size
16mm²
Divisions
18 x

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
80 mm
Width
270 mm
Height
353 mm
Depth
80 mm
