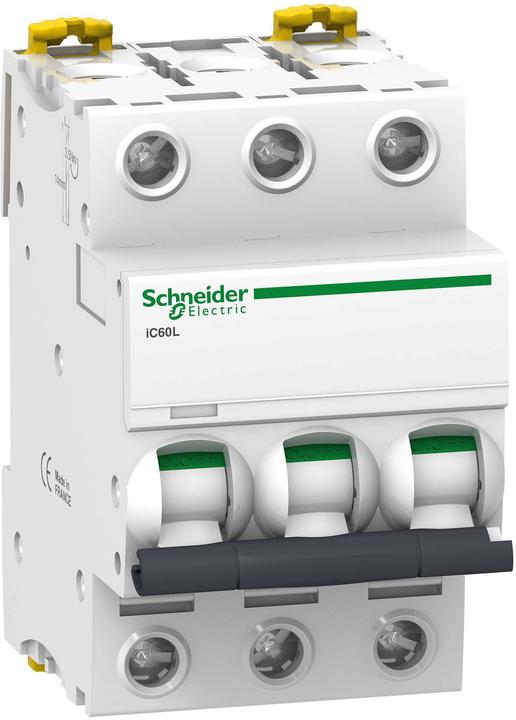

Schneider Electric LSSwitch iC60L 3p

Acti 9 iC60L circuit breaker, 15kA (IEC/EN 60898-1), 100kA (IEC/EN 60947-2). 3-pole, rated current 4A, Z-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Spring mechanism for low-wear switching of contacts. Moving insulation cover. Operation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to show tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Terminals IP20, moving insulation cover. Simple connection terminal from above or below. Easy removal of the individual device when the phase busbar is installed, thanks to the front-accessible mounting element. Compatible with the residual current devices of the Acti 9 iID series as well as the Vigi iC60 residual current block. Additional auxiliary modules (optional) can be added for display of switching status, fault tripping, operational current tripping, undervoltage tripping, and overvoltage tripping. Color shade RAL 9003. The iC60L circuit breaker complies with the following standards: IEC/EN 60898-1 (up to 40A) and IEC/EN 60947-2. Furthermore, this series is VDE certified.
