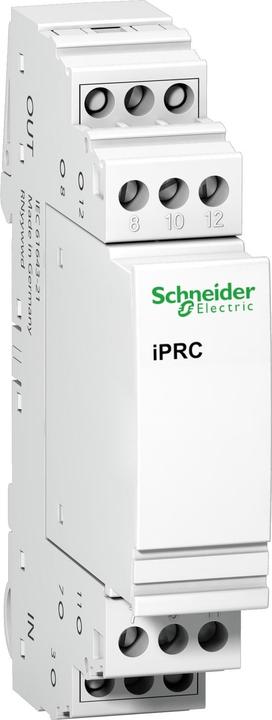

Schneider Electric iPRC Overvoltage
More than 10 items ordered
Product details
The iPRC surge protector from Schneider Electric provides reliable protection against surges in telecommunications systems. With a rated voltage of 130 V AC and a nominal discharge current of 0.45 A, this device is specifically designed for use in DSL and analog systems. The surge protector is suitable for mounting on a DIN rail and features a compact design with a width of 18 mm. The IP20 protection rating ensures that the device can be used in dry indoor environments. With a lightning surge current of up to 10 kA, the iPRC surge protector offers a high level of protection to safeguard sensitive electronic devices from sudden voltage spikes. This product is an essential component for the safety and longevity of telecommunications equipment.
- Two-pole surge protector for DSL/analog applications
- Lightning surge current of 10 kA for effective protection
- DIN rail mounting for easy installation
- Protection level of 160 V for enhanced safety.
Surge protection type | Surge arrester |
Number of conductors | 2x |
Test class | Type 3 |
Item number | 12897776 |
Manufacturer | Schneider Electric |
Category | Surge protection |
Manufacturer No. | A9L16337 |
Release date | 12.3.2020 |
External links |
Colour | White |
Exact colour description | White |
Surge protection type | Surge arrester |
Number of conductors | 2x |
Rated leakage surge current | 10 kA |
Nominal voltage | 130 V |
Protection level | 160 V |
Test class | Type 3 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29.48 kg |
Climate contribution | CHF 0.70 |
Length | 0.07 m |
Width | 0.02 m |
Height | 0.09 m |
