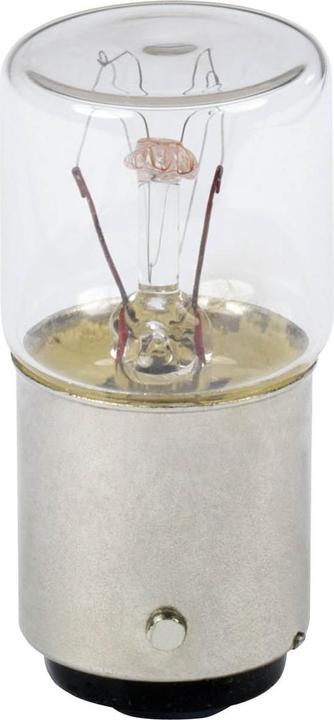

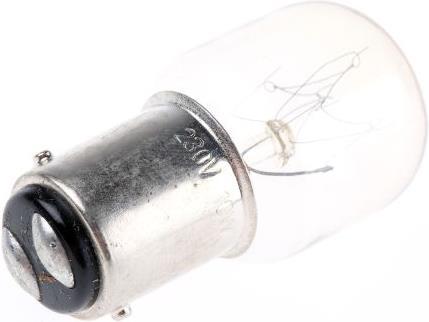

Schneider Electric Incandescent lamp 230V 10W

Operating voltage: 230 Vac/dc
Lamp type: Incandescent
Lamp base: BA15d
Lens color: Clear
Rated current: 208 mA

Complies with IEC/EN 60947-5-1 (signal lights, bases, and covers). CE, UL, CCC, CSA, Gost. Modular signal tower Schneider XVBC. The Harmony XVBC series from Schneider is a visual and acoustic signal tower designed to indicate various operating states for a device or system, such as start, machine stop, no material, call for technical personnel, and fault signaling. These signal towers offer a high level of protection, additional brightness, and excellent reliability, making them suitable for any type of environment.

Industrial applications include machine manufacturers (assembly lines, etc.), mobile loads (mobile cranes, trolleys, etc.). The para-industrial and service sector includes highway toll stations, cash registers, distribution boards, etc.

Features and benefits:

• Available as incandescent (bulbs must be ordered separately) and LED modules
• Mounting of up to 5 light modules or 4 light modules and one sound module is possible
• Buzzer available with intermittent or continuous tone
• Base and cover for mounting must be ordered separately
• Tubes and tube covers are available for higher mounting of the signal lights
• Tone unit operates with a supply of 12–48 V ac or 120–230 V and delivers a sound level of 90 dB at a frequency of 0–12 kHz
• All units have an operating temperature range of –25 to +50 °C (except for continuous light lens units without bulbs: –25 to +70 °C)
• Made from fiberglass-reinforced polyamide and polycarbonate
• Protection class IP65
• Signaling over long distances: 35 to 50 m
• The units have a diameter of 70 mm and a height of 63 mm
• Cable entry from the side or from below.
