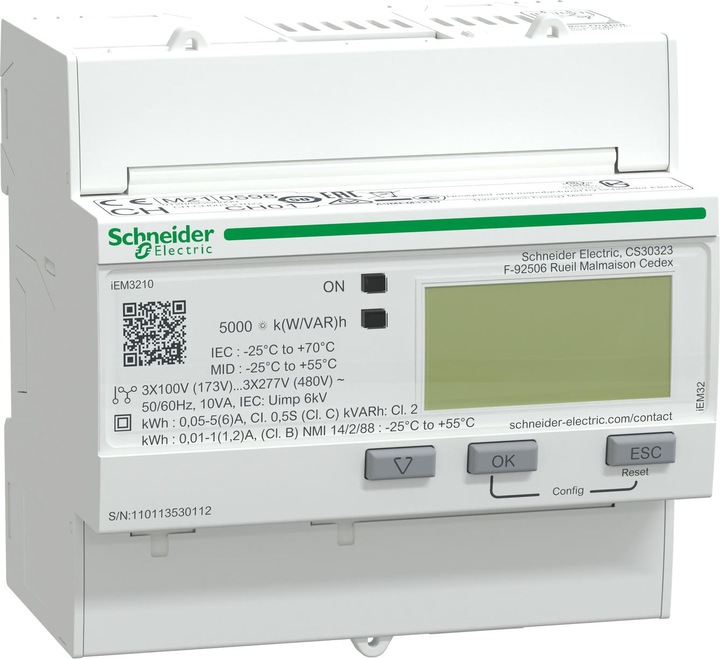

Schneider Electric iEM3210 Energy Meter CT Pulse MID

Ratings
Delivered between Wed, 28.5. and Thu, 12.6.
Only 1 item in stock at supplier

Product details

Display type: LCD
Number of digits: 10
Pulse output: Yes
Depth: 69mm
Temperature min: -25°C
Series: Acti 9 iEM3000

The Acti 9 iEM3000 series of energy meters offers a range of DIN rail mounted energy meters ideal for separate billing and cost allocation. When combined with communication systems such as Smart Link, the Acti 9 iEM3000 series facilitates the integration of electrical distribution metering into the customer's asset management systems. Two versions are available: 63 A direct metering (iEM3100 models) and meters connected to current transformers (iEM3200).

iEM3200: kWh meter with partial meter
iEM3210: kWh meter with partial meter and pulse output, MID approved
iEM3215: multi-tariff meter, controlled by digital input or internal clock, MID approved
iEM3250: kWh meter with partial meter and current, voltage and power measurement, Modbus communication
iEM3255: energy meter, four quadrants, multiple tariffs with partial meter and current, voltage and power measurement, Modbus communication, digital I/O, MID approved.

Key specifications

Maximum current
6 A
Energy meter type
Energy meter
mounting style
Top-hat rail
Nominal voltage
480 V
Item number
9736114

General information

Manufacturer
Schneider Electric
Category
Energy monitors
Manufacturer no.
A9MEM3210
Release date
24.9.2018

Energy meter property

Energy meter type
Energy meter
mounting style
Top-hat rail
Maximum current
6 A
Nominal voltage
480 V
Display type
Digital
Tariff execution
Single tariff
Pulse output
Electrical
Polar type
Four-wire, Three-wire
Accuracy class
C

Safety

Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Height
95 mm
Length
69 mm
Width
90 mm
Weight
260 g
