Schneider Electric FIBRE CONVERTER MM/LC 2CH 100MB CC BMXNRP0200C

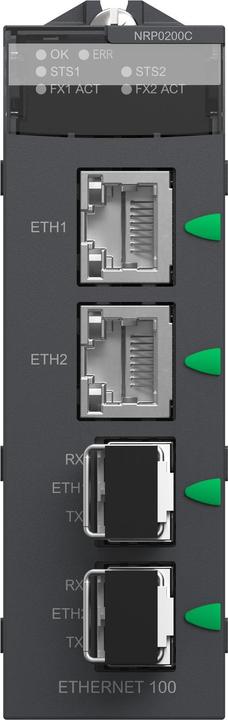

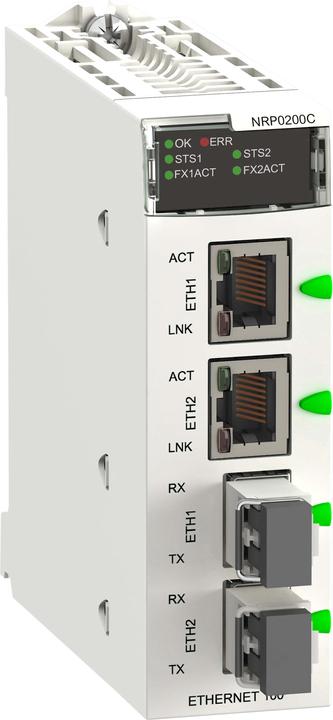

This fiber optic converter is part of the Modicon X80 series, which offers common input and output options for Modicon M340 and Modicon M580. This fiber optic repeater is equipped with 2 RJ45 Ethernet ports and 2 fiber optic Ethernet ports. It is a fiber optic repeater with a current of 200 mA and a nominal voltage of 24 V, providing a wavelength of 1310 nm. Modicon X80 modules offer a unified environment for the use of I/O modules in automation architectures, reducing costs for spare parts, maintenance, and training. Thanks to a protective coating on the circuit board, this product can be used in harsh environments with a temperature range of -25 °C to +60 °C. The optical repeater has 2 RJ45 ports with 100BASE-TX and 2 fiber optic ports with 100BASE-FX Ethernet ports, with an operational range of 0 m to 2000 m. It is an IP20 certified product. This product meets CE, UL, CSA, RCM, and EAC standards and is certified for applications in power generation, the merchant marine, railways, and hazardous areas. This product is compatible with the entire range of Modicon controllers. The repeater is connected via Ethernet interlink cables to the CRA drop adapters. The product must be installed in the module carrier and secured with 2 screws.
