Schneider Electric Electronic Release Device C6336M500

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 6.3M
Type: C6336M500
Overload Release Current Setting: 250 - 500 A
Initial Value of the Undelayed Short-Circuit Release Setting Range: 6500 A
Final Value of the Undelayed Short-Circuit Release Setting Range: 6500 A
Rated Continuous Current Iu: 500 A
Voltage Type for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 3
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: Yes
Type of Motor Protection: Electronic Release

Schneider Electric Electronic Release Device C6336M500: Additional Details

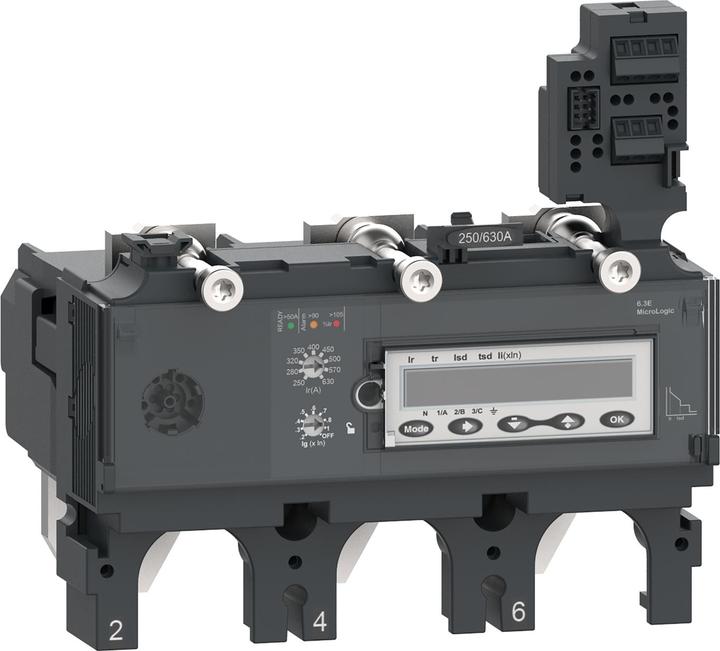

This electronic 3-pole 3d release device MicroLogic 6.3 E-M (Energy) is an electronic release device used in ComPacT NSX 630 circuit breakers. This electronic release device with a rated current of 500 A is the best choice for motor protection applications. It features customizable long-term overload protection. It also offers customizable short-term protection and a fixed undelayed short-circuit protection. It provides phase unbalance or phase failure protection and an additional customizable earth fault protection. MicroLogic 6.3 E-M indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. MicroLogic 6.3 E-M is equipped with a display module that allows for energy measurements and fine-tuning. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX. EAN: 3606482003132.
