Product details
Schneider Electric Electronic Release Device C4031M320
Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 1.3M
Type: C4031M320
Initial value of the instantaneous short-circuit release setting range: 4800 A
Final value of the instantaneous short-circuit release setting range: 4800 A
Rated current Iu: 320 A
Type of voltage for operation: AC
Rated control supply voltage Us at AC 50 Hz: 690 V
Rated control supply voltage Us at AC 60 Hz: 690 V
Number of poles: 3
Short-circuit release function: delayed
With earth fault protection function: no
Type of motor protection: electronic release

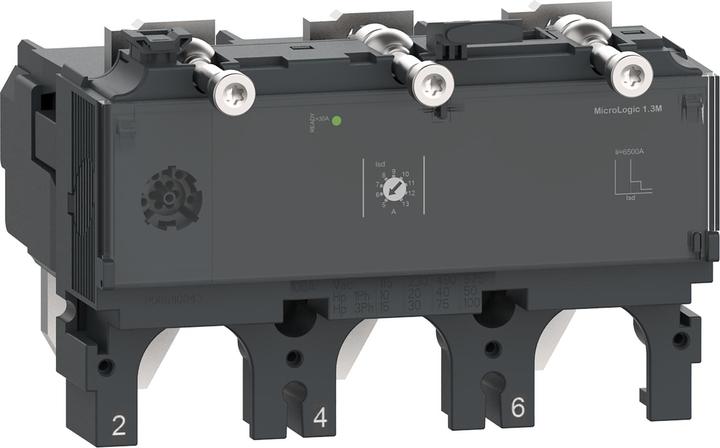

The MicroLogic 1.3 M is a 3-pole electronic release device used in the ComPacT NSX 400/630 circuit breakers. This electronic release device with a rated current of 320 A is the best choice for motor protection applications. It offers customizable short-time protection and fixed instantaneous short-circuit protection. The green Ready LED blinks when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.
