Schneider Electric Electron.

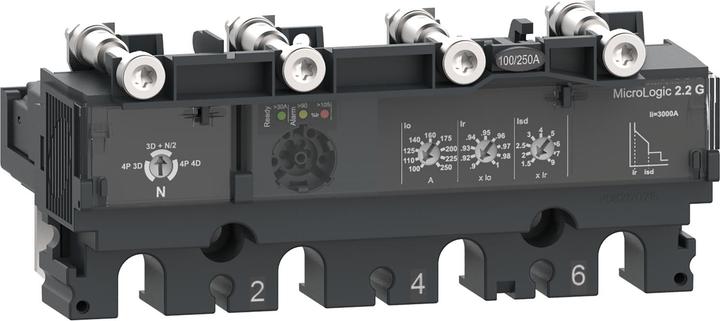

Schneider Electric Electron. Trip unit C1042G040 Manufacturer :Schneider Electric Designation :Electron. MicroLogic 2.2G trip unit Type :C1042G040 Overload release Current setting :18...40 A Initial value of the instantaneous short-circuit release setting range :600 A Final value of the instantaneous short-circuit release setting range :600 A Rated continuous current Iu :40 A Voltage type for actuation :AC Rated control supply voltage Us at AC 50 Hz :690 V Rated control supply voltage Us at AC 60 Hz :690 V Number of poles :4 Short-circuit release function :delayed With earth fault protection function :no Motor protection version :electronic release Schneider Electric Electron. Trip unit C1042G040: more details This MicroLogic 2.2 G is an electronic 4-pole trip unit used with the ComPacT NSX 100/160/250 circuit-breakers. This electronic trip unit with a rating of 40 A is the best choice for generator protection applications. It features customisable long-term protection against overload. It also offers customisable short-time protection and fixed instantaneous short-circuit protection. MicroLogic 2.2 G indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture when combined with the PowerTag NSX and ComPacT NSX basic switch. EAN: 3606482000773.
