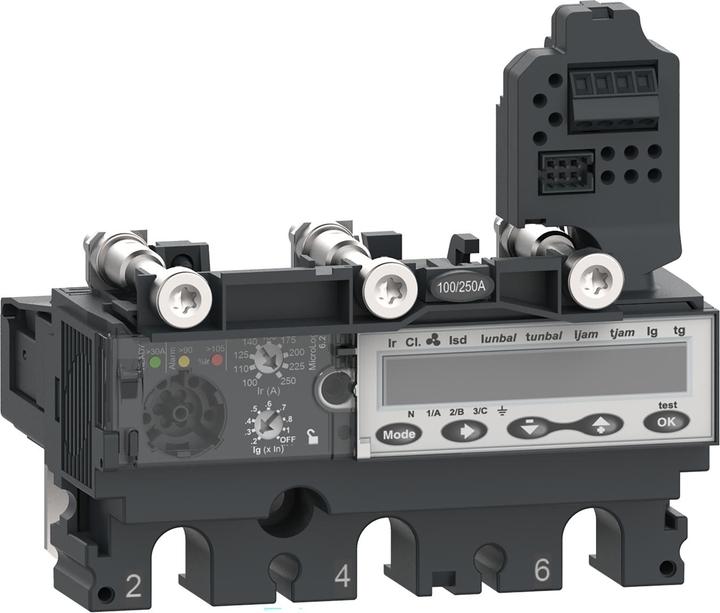

Schneider Electric Electronic Release Device C1036E040

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 6.2E
Type: C1036E040
Overload Release Current Setting: 18 - 40 A
Initial Value of the Undelayed Short-Circuit Release Setting Range: 60 A
Final Value of the Undelayed Short-Circuit Release Setting Range: 600 A
Rated Continuous Current Iu: 40 A
Voltage Type for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 3
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: Yes
Type of Motor Protection: Electronic Release

This electronic 3-pole release device MicroLogic 6.2 E is an electronic release device used in the ComPacT NSX 100/160/250 circuit breakers. This electronic release device with a rated current of 40 A is an optimal choice for all standard and special applications. It features an adjustable long-time protection against overload. Additionally, it offers adjustable short-time delayed short-circuit protection and un-delayed short-circuit protection. It also includes adjustable earth fault protection. MicroLogic 6.2 E indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. MicroLogic 6.2 E is equipped with a display module that allows for energy measurements and fine adjustments. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.
