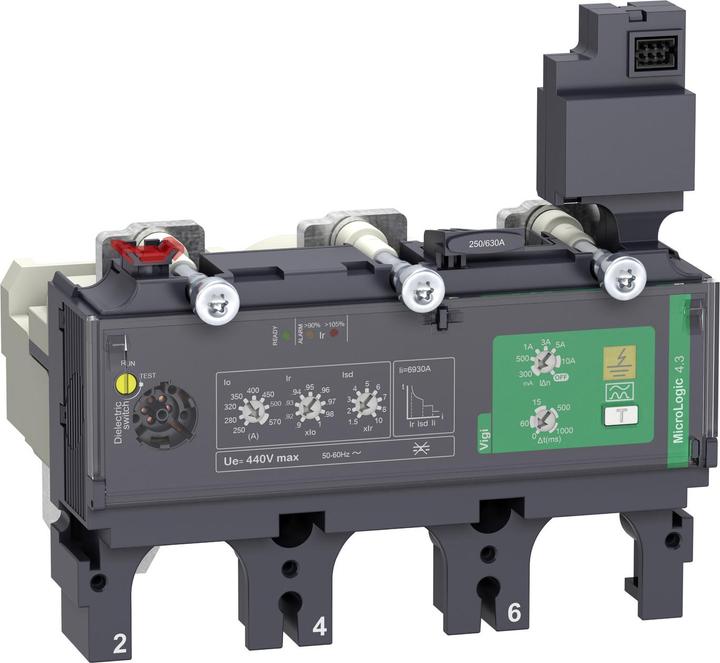

Schneider Electric Electron.

Schneider Electric Electronic Release Device C6334V570

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 4.3
Type: C6334V570
Overload Release Current Setting: 228 - 570 A
Initial Value of Undelayed Short-Circuit Release Setting Range: 6900 A
Final Value of Undelayed Short-Circuit Release Setting Range: 6900 A
Rated Continuous Current Iu: 570 A
Type of Voltage for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 440 V
Rated Control Supply Voltage Us at AC 60 Hz: 440 V
Number of Poles: 3
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: No
Type of Motor Protection: Electronic Release

Schneider Electric Electronic Release Device C6334V570: Additional Details
The MicroLogic 4.3 is a 3-pole electronic release device used in ComPacT NSX 630 circuit breakers. This electronic release device with a rated current of 570 A is an optimal choice for all standard and special applications. It features adjustable long-time protection against overload. It also offers adjustable short-time protection and a fixed undelayed short-circuit protection. The MicroLogic 4.3 Vigi release device provides integrated, adjustable residual current protection. MicroLogic 4.3 indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. A pre-alarm for residual current can be accessed remotely by installing the optional SDx module. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.
