Schneider Electric ELECT A9Z51240

Ratings
BrandMore from Schneider Electric
Delivered between Sat, 23.8. and Wed, 10.9.

Product details

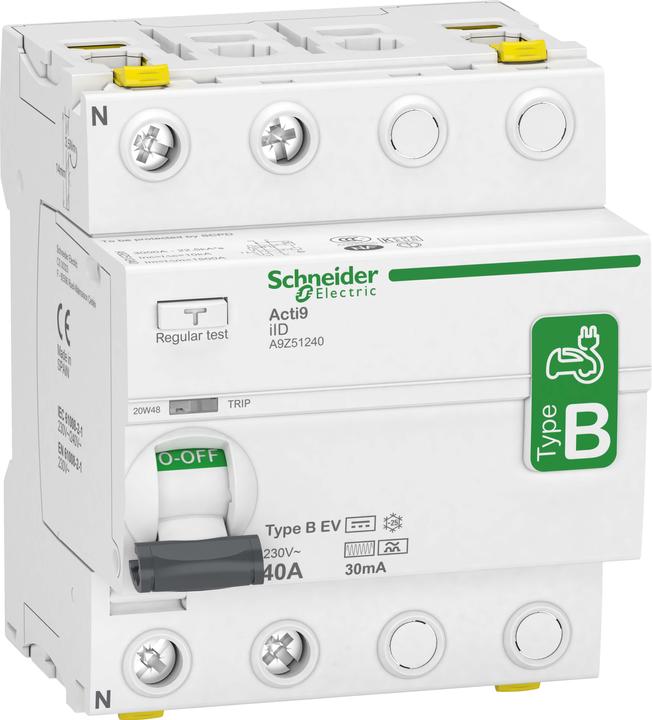

The Schneider Electric A9Z51240 is a highly advanced residual current circuit breaker specifically designed for electric charging stations. With a rated current of 40A and a rated residual current of 30mA, this 2-pole switch provides reliable protection against fault currents. It meets the requirements of Type B-EV, making it ideal for use in electric vehicle charging stations. The switch is designed for an operating voltage of 230V AC at 50Hz and offers an insulation voltage of up to 250V AC. Notable features include a mechanical fault indication (VisiTrip) to display tripping events and a safe contact indication (VisiSafe) that provides clear feedback on the device's status. The simple mounting on a DIN rail and the option for double-sided cable connection make installation straightforward. Additionally, optional auxiliary modules can be added to expand functionality.

  • All-current sensitive residual current circuit breaker for electric charging stations
  • Mechanical fault indication (VisiTrip) for displaying tripping events
  • Safe contact indication (VisiSafe) for voltage-free status
  • Double connection terminals for dual-sided cable connection
  • Easy removal of the device with the phase rail installed.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
44 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
2
Item number
32018399

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9Z51240
Release date
24.10.2022

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
40 A
Rated voltage
230 V
voltage type
AC/DC
Rated insulation voltage Ui
250 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
44 mm
Width
4 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
