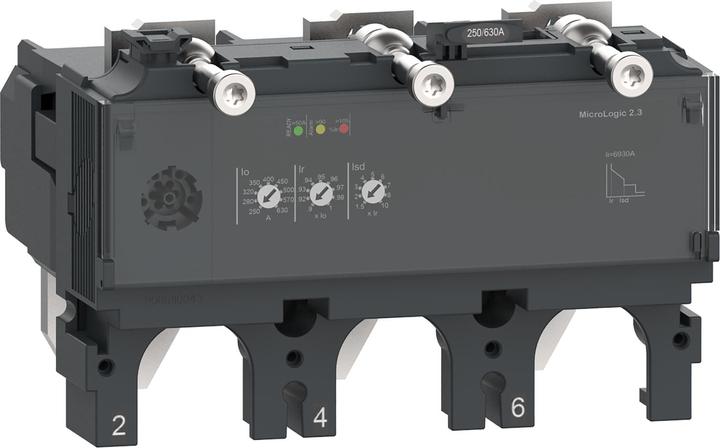

Schneider Electric Current relay MicroLogic 2.3 for ComPacT NSX 630 circuit-breaker, electronic, N

Schneider Electric Electronic Release Device C6332D630

Manufacturer: Schneider Electric
Designation: Electronic Release Device MicroLogic 2.3
Type: C6332D630
Overload Release Current Setting: 250..630 A
Initial Value of the Undelayed Short-Circuit Release Setting Range: 6900 A
Final Value of the Undelayed Short-Circuit Release Setting Range: 6900 A
Rated Continuous Current Iu: 630 A
Type of Voltage for Operation: AC
Rated Control Supply Voltage Us at AC 50 Hz: 690 V
Rated Control Supply Voltage Us at AC 60 Hz: 690 V
Number of Poles: 3
Short-Circuit Release Function: Delayed
With Earth Fault Protection Function: No
Type of Motor Protection: Electronic Release

The MicroLogic 2.3 is a 3-pole electronic release device designed for use with ComPacT NSX 630 circuit breakers. This electronic release device, with a rated current of 630 A, is the best choice for all standard and special applications. It features a customizable long-time protection against overload. Additionally, it offers customizable short-time protection and a fixed undelayed short-circuit protection. The MicroLogic 2.3 indicates overloads with alarm LEDs. The green Ready LED blinks when the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture when combined with the base switch PowerTag NSX and ComPacT NSX.
