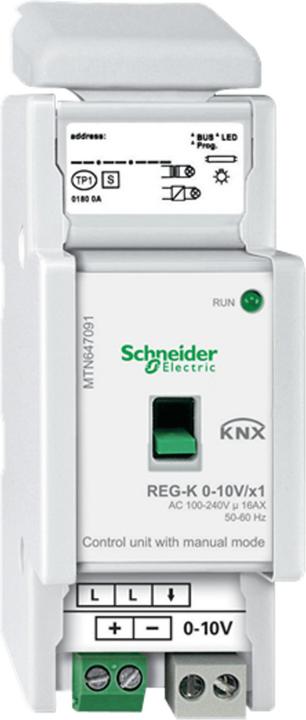

Schneider Electric control unit MTN647091

Manufacturer: Schneider Electric
Designation: Control unit 0-10 V REG-K/1-gang
Type: MTN647091
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: None
Radio bidirectional: No
Mounting type: REG
Width in pitch units: 2.5
With bus coupling: Yes
Extension input: No
On-site/manual operation: Yes
With LED display: No
Interface 1-10 V: Yes
Max. switching current (ohmic load): 16 A
Max. switching capacity: 3600 W
Number of outputs: 1
Max. control current: 100 mA
Control current: 100 mA
Protection class (IP): IP20

Schneider Electric control unit MTN647091 is designed for connecting devices with a 0-10 V interface to KNX. It features an integrated bus coupling unit and screw terminals (230 V) or pluggable screw terminals (0-10 V). Each manual switch allows for manual operation of the corresponding 230 V switching output. It is suitable for mounting on top hat rails TH35 according to EN 60715. The bus connection is made via a bus connecting terminal; a data rail is not required.

Switching contact: for switching the ECGs/transformers.
Rated voltage: AC 230 V, 50-60 Hz
Rated current: 16 A, cos Phi 0.6
Switching capacity: AC 230 V, 3600 W, cos Phi 1
Capacitive load: AC 230 V, 16 A, 200 µF
Incandescent lamps: AC 230 V, max 3600 W
Halogen lamps: AC 230 V, max 2500 W
Fluorescent lamps: AC 230 V, max 3600 VA, uncompensated; AC 230 V, max 2500 VA, parallel compensated
LV halogen lamps with wound transformer: max 2000 VA
0-10 V interface: 0.12-100 mA
Voltage range: DC 0-10 V
Device width: 2.5 TE corresponds to approx 45 mm
Scope of delivery: With bus connection terminal and cable cover.
