Schneider Electric Charge

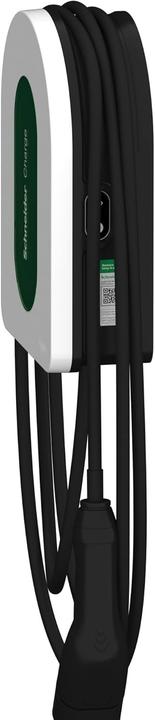

Schneider Charge 11 kW Wallbox with Type 2 charging cable 5 m for Mode 3 charging according to IEC 61851-1. Installation is simple and requires no special tools, and it can be integrated into a smart home system using the Wiser app for control and monitoring of the wallbox. It is suitable for home use, for both indoor and outdoor installation (IP55 / IK10) on the wall. The wallbox is three-phase with a maximum charging power of 11 kW and includes a 6 mA DC detection, allowing the use of an RCD Type A. The charging power is regulated by the optional Schneider Charge Peak Controller via PLC, including pairing between the Peak Controller and Schneider Charge.

The sleek and elegant design features a front LED to indicate the status and a side LED to monitor the connection status to the home network. Charging is initiated either via Plug'n'Charge or using the Wiser app, with termination handled by the vehicle.

The wallbox has a three-phase network connection (3P+N), 400 V / 16 A and is suitable for TN-S, TT, and IT networks. Dimensions are W x H x D: 244 mm x 352 mm x 107 mm, weight is 4.4 kg, and operating temperature ranges from -35 to 55 °C. Available colors are white (RAL 9003) and green. Communication with the Wiser app or third-party providers is done via OCPP 1.6j. Connection to the home network is via Ethernet RJ45 or Wi-Fi.
