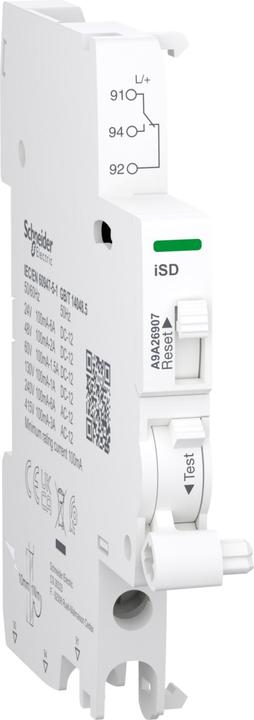

Schneider Electric Auxiliary contact, remote signalling switch, Acti9, iSD, 1 changeover contact, 100mA to 6A, 24VAC

This electrical accessory from Acti9 is a switch (normally open/normally closed) for indicating the position of the circuit breaker in the event of an electrical fault or tripping. The operating current ranges from 100 mA to 6 A at a frequency of 50 Hz to 60 Hz at 240 VAC, and from 100 mA to 3 A at a frequency of 50 Hz to 60 Hz at 415 VAC. The operating current at 100 mA is between 24 VDC and 130 VDC. The operating current of 6 A is at 24 VDC, 2 A at 48 VDC, 1.5 A at 60 VDC, 1 A at 110 VDC, and 130 VDC. There is a fault and alarm contact. The accessory is intended for installations in small commercial enterprises or buildings. It is compatible with Acti9 series such as iC60, iID, iDPN ARC, iDPN Vigi, iDPN Vigi ARC, iSW, iC40, iC40 ARC, iCV40, iC40 XA, iCV40 XA, and iC60 RCBO.

The screw terminal connection at the bottom allows for rigid copper cables with a cross-section of 1 mm² to 4 mm². For flexible copper cables, the screw terminal connection allows a cross-section of 0.5 mm² to 2.5 mm². The connection allows a cross-section of 2.5 mm² for two cables. The rated insulation voltage (Ui) is up to 500 V, and the rated impulse voltage (Uimp) is 4 kV. The dimensions are (W) 9 mm x (H) 86 mm x (D) 73 mm. The color of the product is white (RAL 9003). The pollution degree is 3, and the tropical suitability degree is treatment 2. The tightening torque for the connection is 1 N·m (bottom) for screwdriver type PZ1. According to standard IEC 60529, the IP protection degree is IP20. The operating temperature ranges from -35 °C to +70 °C, and the storage temperature ranges from -40 °C to +85 °C. This product complies with the standards EN/IEC 60947-5-1 and GB/T 14048.5 and is certified with the CE and UKCA marks.
