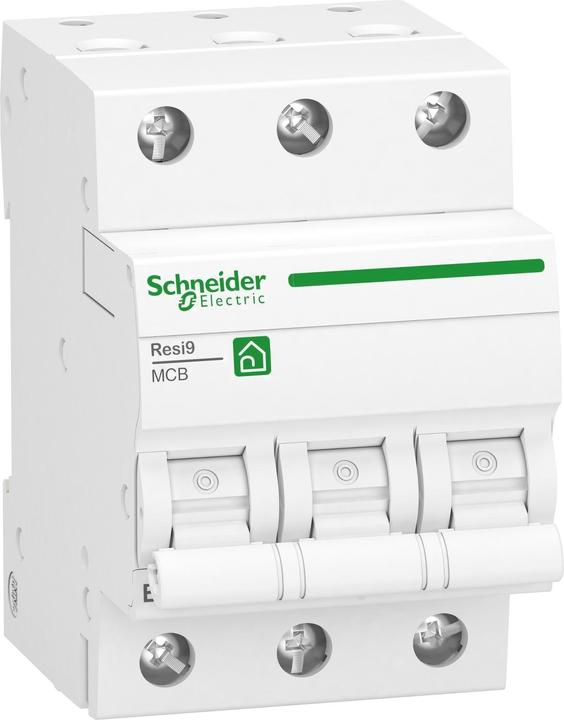

Schneider Electric Automatic control unit B 32A 3-pole R9F23332 Resi9

Ratings
BrandMore from Schneider Electric
Delivered between Fri, 26.12. and Sat, 3.1.
6 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Schneider Electric Circuit Breaker R9F23332

Manufacturer: Schneider Electric
Description: Circuit breaker 3P, 32A, B
Type: R9F23332
Installation depth: 44 mm
Tripping characteristic: B
Number of poles (total): 3
Number of protected poles: 3
Rated current: 32 A
Rated voltage: 400 V
Rated insulation voltage Ui: 440 V
Rated impulse voltage withstand Uimp: 4 kV
Voltage type: AC
Rated short-circuit capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Power loss: 3.2 W
Energy limitation class: 3
Flush-mounted installation: no
Switching neutral conductor: no
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: no
Width in division units: 3
Protection class (IP): IP20
Ambient temperature during operation: -25..60 °C
Connectable conductor cross-section multi-stranded: 1..25 mm²
Connectable conductor cross-section single-stranded: 1..35 mm²
Explosion-proof: no

Additional details: Resi9 circuit breaker, 3-pole, 32A, characteristic B. Switching capacity of 6kA according to IEC/EN 60898-1. Dual-function terminal for cables and fork busbar at the bottom of the device. Rear-mounted DIN rail fastening element at the bottom of the device. Spring mechanism for low-wear and user-independent switching of contacts. Color shade RAL 9003.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
Width
54 mm
Length
75 mm
number of poles
3
Item number
22724216

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
R9F23332
Release date
13.10.2022

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Flush-mounted
number of poles
3
Tripping characteristic
B
Rated current
32 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria, Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
75 mm
Width
54 mm
Height
85 mm
Weight
358 g

Package dimensions

Length
9 cm
Width
9 cm
Height
6 cm
Weight
350 g
