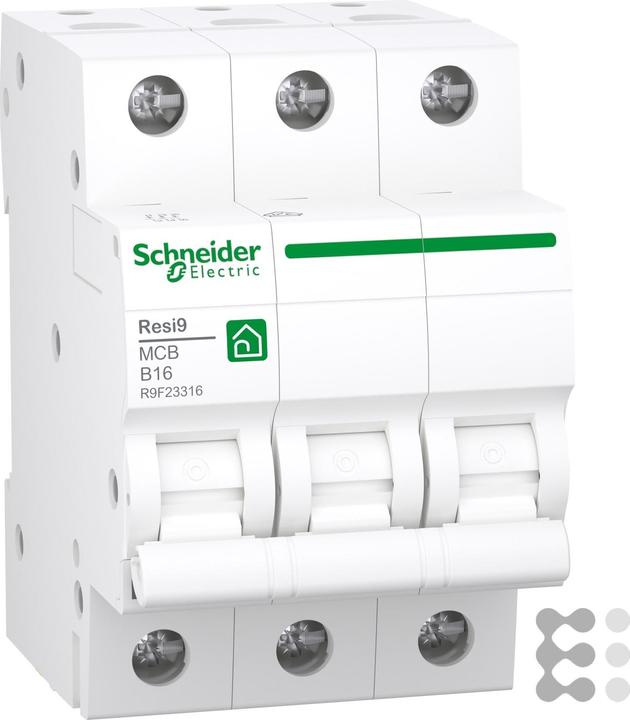

Schneider Electric Automatic control unit B 16A 3-pole R9F23316 Resi9

Ratings
Delivered between Tue, 26.8. and Tue, 2.9.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Product details

Schneider Electric Circuit Breaker R9F23316

Manufacturer: Schneider Electric
Designation: Circuit Breaker 3P, 16A, B
Type: R9F23316
Installation Depth: 44 mm
Tripping Characteristic: B
Total Number of Poles: 3
Number of Protected Poles: 3
Rated Current: 16 A
Rated Voltage: 400 V
Rated Insulation Voltage Ui: 440 V
Rated Impulse Voltage Uimp: 4 kV
Type of Voltage: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50..60 Hz
Power Loss: 2.6 W
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: no
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature During Operation: -25..60 °C
Connectable Conductor Cross-Section Multi-Wire: 1..16 mm²
Connectable Conductor Cross-Section Single-Wire: 1..25 mm²
Explosion-Proof: no

Schneider Electric Circuit Breaker R9F23316: additional details
Resi9 circuit breaker, 3-pole, 16A, characteristic B. Switching capacity of 6kA according to IEC/EN 60898-1. Dual-function terminal for cables and fork busbar at the bottom of the device. Rear-mounted DIN rail fastening element at the bottom of the device. Jump switching for low-wear and user-independent contact switching. Color shade RAL 9003.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
75 mm
Width
54 mm
mounting style
Flush-mounted
number of poles
3
Item number
22654218

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
R9F23316
Release date
13.10.2022

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
3
Tripping characteristic
B/6 ka
Rated current
16 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Bulgaria

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
75 mm
Width
54 mm
Height
85 mm
