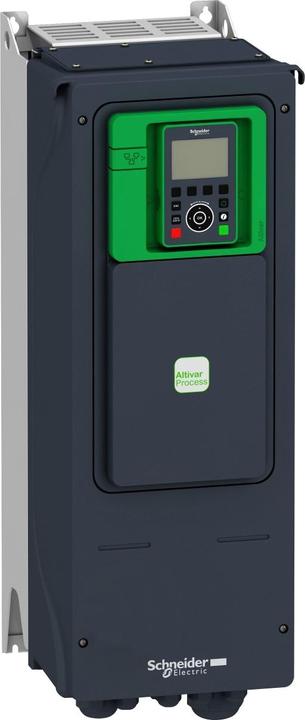

Schneider Electric ATV950 15KW 400V/480V IP55 VSD

Power = 15 kW
Phase = 3
Supply voltage = 400 V ac
Rated current = 27 A @ 380 V ac
Output frequency = 0.1 → 500Hz
For use with = Three phase induction and synchronous motors.
Total width = 299mm
Overall length = 263mm
Total depth = 728.4mm
Control unit = Yes
Drive type = Adjustable frequency
Filter included = Yes
Function = Motor control

Altivar ATV950 - Variable speed drives. Altivar's ATV950 process drive is an IP55 wall-mounted variable frequency drive for 3-phase synchronous and induction motors, specifically designed for the following market segments: Water and Wastewater, Oil and Gas, Mining, Minerals and Metals, and Food and Beverage. ATV950 variable speed drives are designed for maximum productivity: Excellent motor control and connectivity, easily accessible via PC, tablet or smartphone. All models are highly reliable and of excellent quality. Performance in motor control with overload torque up to 180% Tn in open loop or closed loop Asynchronous, synchronous, special motors: All efficiency classes, brand independent, permanent magnet motors, torque motors, conical rotor brake motor, reluctance motor Integrated dual port with EtherNet/IP and Modbus TCP, cyber security (Achilles Level 2) Intelligently integrates with PlantStruxure and Foxboro Evo process automation systems Optimized energy efficiency, installation detects increase in energy consumption Adaptation to the process through special functions with modular design Integrated safety functions STO SIL3.
