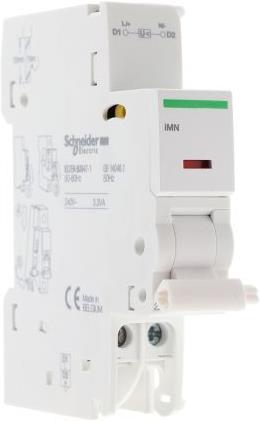

Schneider Electric Acti9 iMN tripping unit 220-240VAC

Ratings
BrandMore from Schneider Electric
Delivered between Fri, 4.7. and Tue, 22.7.

Product details

Range: Acti 9
Series: iMN
Type: Undervoltage release
Control voltage: 220 to 240 V AC

Auxiliary contacts: Auxiliary electrical components are combined with iC60 circuit breakers, iID residual current circuit breakers, iSW-NA remotely tripped disconnectors, RCA remote controls, and ARA automatic make contacts. They allow tripping or remote indication of their position (open/closed/tripped) in the event of a fault.

Tripping auxiliary components:

  • iMN: Undervoltage release
  • iMNs: Undervoltage release with delay
  • iMNx: Undervoltage release, independent of supply voltage
  • iMX: Shunt release
  • IMX + OF: Shunt release with NC/NO contact

Indicator auxiliary components:

  • iOF: Normally closed/normally open contact
  • iSD: Fault indication contact
  • IOF/SD + OF: Normally closed/normally open contact and switchable OF or SD contact.

Key specifications

Circuit breaker type
Auxiliary switch
Width
18 mm
mounting style
Top-hat rail
number of poles
4
Item number
9725160

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9A26960
Release date
24.9.2018
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Auxiliary switch
mounting style
Top-hat rail
number of poles
4
Rated current
63 A
Rated voltage
240 V
voltage type
AC
Rated insulation voltage Ui
240 V

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Width
18 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
