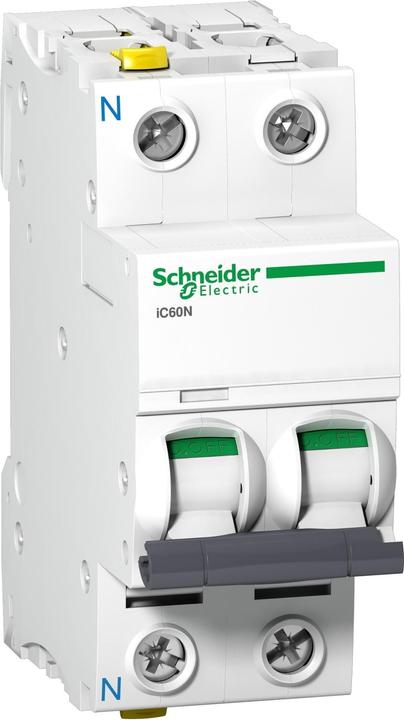

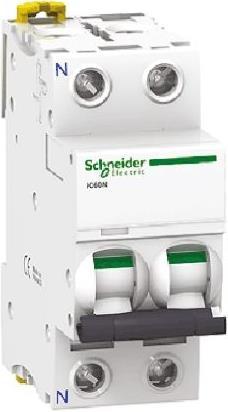

Schneider Electric Acti9 iC60N MCB 1+N Pole 6A Curve C

Area: Acti 9
Series: iC60N
Number of Poles: 1P + N
Rated Current: 6 A
Tripping Characteristic: Type C
AC Rated Voltage: 230 V, 400 V
DC Rated Voltage: 72 V
Breaking Capacity: 6 kA
Depth: 91 mm

Miniature overload switch Acti9 iC60N, 1-pole + N. The iC60N overload switch with curve B, C, D is a multi-standard overload switch that protects the circuit against short-circuit and overload currents. VisiSafe ensures that the downstream circuit is always safe, regardless of overvoltage conditions, wear, or operator experience, even in the most challenging environments. The green strip indicates the safe position of the contacts. VisiTrip displays the fault tripping through the red window on the front, allowing for quick diagnosis, resolution, and rapid reconnection of loads, facilitating easier building management and reduced downtime. Insulated connection terminals IP20, large circuit labeling area, double clip for disassembly when the combined busbar is mounted.
