Name: Acti9 iC60L MCB 4 Pole 32A Curve C
Brand: Schneider Electric
SKU: 9972416
Price: 188 CHF
Availability: InStock

productDetailPageQuery

Zurich

Lausanne

Wohlen

Basel

Kriens

Winterthur

Bern

Dietikon

St. Gallen

Geneva

Schneider Electric

Acti 9 iC60L circuit breaker, 15kA (IEC/EN 60898-1), 20kA (IEC/EN 60947-2). 4-pole, rated current 32A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar at the top and bottom of the device. Snap-on mechanism for low-wear switching of contacts. Movable insulation cover. Actuation of the DIN rail mounting element at the front of the device for tool-free installation and easy accessibility for the user. With mechanical front-side fault indication (VisiTrip) to display tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Terminals IP20, movable insulation cover. Simple connection terminal from above or below. Easy removal of the individual device when a phase busbar is installed, thanks to the front-accessible mounting element. Compatible with the residual current devices of the Acti 9 iID series, as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional) - indication of switching position, fault tripping, operating current trigger, undervoltage trigger, overvoltage trigger. Color shade RAL 9003. The iC60L circuit breaker complies with the following standards: IEC/EN 60898-1 (up to 40A) and IEC/EN 60947-2. Furthermore, this series is VDE certified.

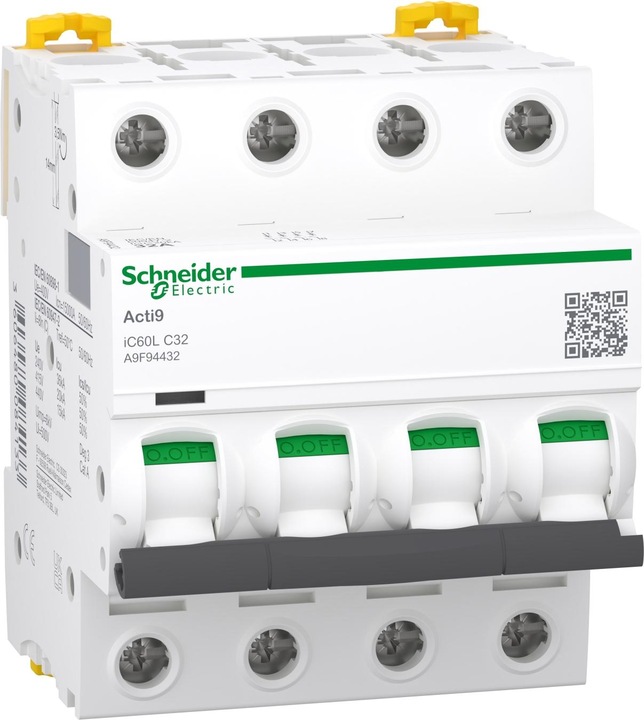

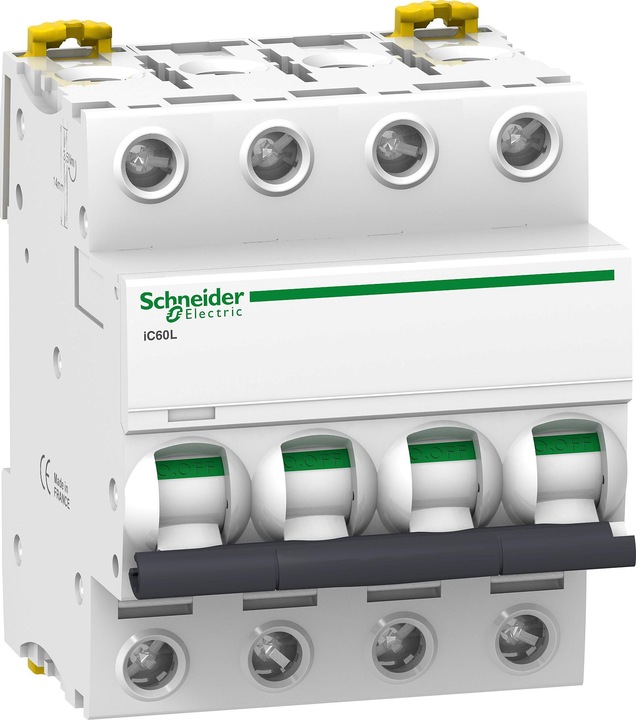

Actual product image Schneider Electric Acti9 iC60L MCB 4 Pole 32A Curve C

Key specifications

Circuit breaker type

Mounting type

number of poles

Tripping characteristic

Rated current

Length

Width

Acti9 iC60L MCB 4 Pole 32A Curve C

Residual-current device

30-day right of return

General information

Colour

Circuit Breaker Features

Origin

Product standards

Voluntary climate contribution

Scope of delivery

Product dimensions

Warranty
