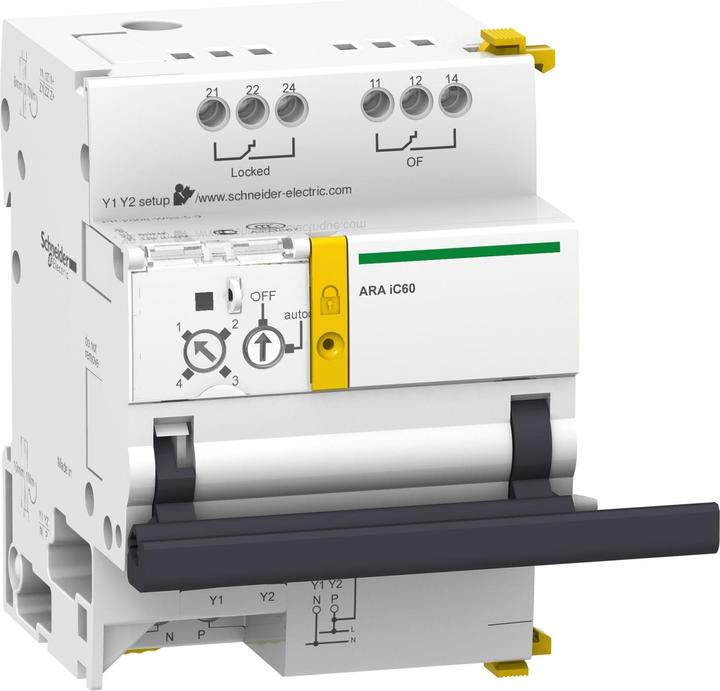

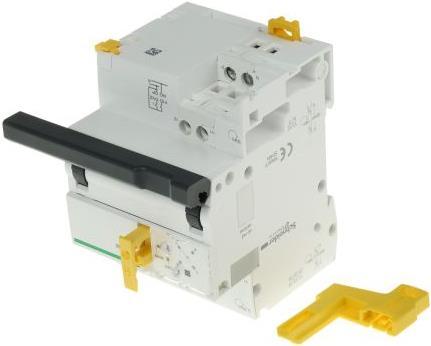

Schneider Electric Acti9 Auto Recloser ARA iC60 1-2Pole

Series: iC60
Supply Voltage: 230 V AC
For use with: Circuit Breakers
Mounting Type: DIN Rail Mounting
Maximum Number of Short-Circuit Attempts: 5
Dimensions: 63 x 70 x 85 mm
Minimum Delay Time until Reset_SC_ACG: 60 s
Number of Short-Circuit Program Options_SC_ACG: 4
Length: 63 mm

The automatic reclosers of the Acti9 ARA series ensure certification and compliance with IEC regulations. The Automatic Recloser Auxiliary Device (ARA) provides automatic reconnection of the corresponding protective device after tripping, preventing service interruptions. The automatic reclosers of the Acti9 ARA series enhance the availability of installations without supervision, as well as in isolated, hard-to-reach locations that require high availability to reduce maintenance costs. The Acti9 ARA reconnects the circuit after a temporary fault at user-configurable intervals. In the event of a permanent fault, the ARA locks in the open position after a user-defined number of operations to safely isolate the area from the system. Program selection: four predefined and easily adjustable programs on the front. Status indicator on the front for quick status checks. Integrated padlock device. Manual local lockout for maintenance work. Bistable operation. Auto/OFF selector switch. Two remote control inputs.
