Schneider Electric 3P std IP65 switch disconnector,16A Ie

was CHF34.95
1Ratings
Delivered tomorrow
Only 2 pieces in stock
Free shipping starting at 50.–

Product details

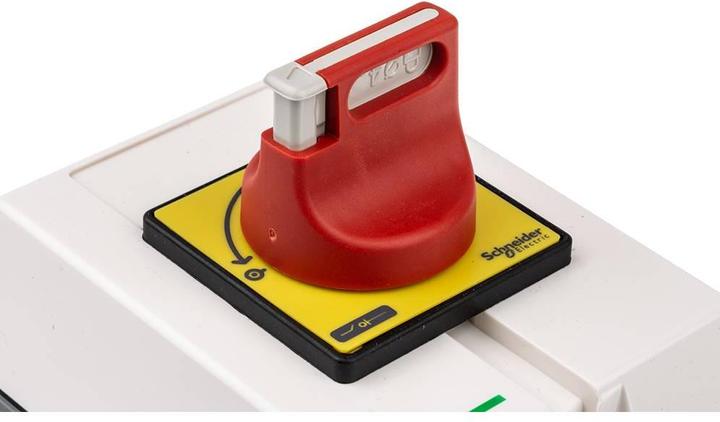

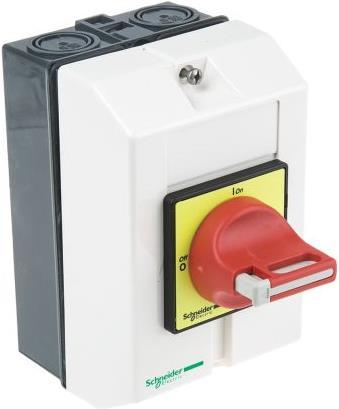

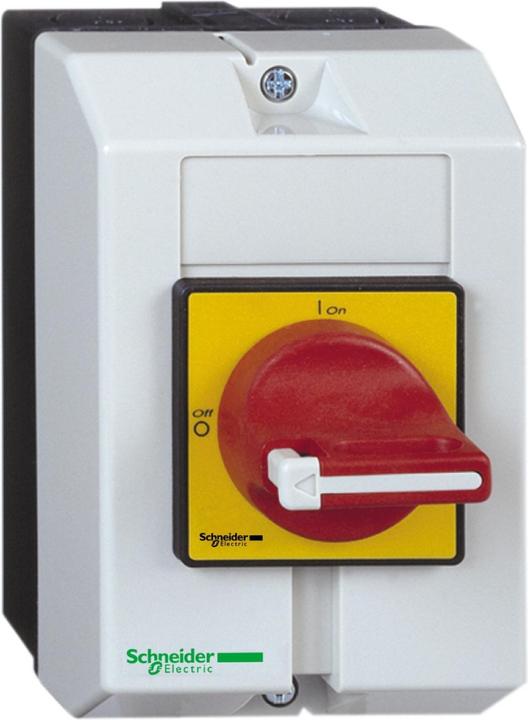

Vario-TeSys is a closed emergency stop main switch/start switch, 3-pole, Ithe 16A 690V, designed for versatile applications in buildings and residential construction (for example, heat pumps and PV systems) as well as in commercial and industrial settings (such as motor applications). The housing has an IP65 protection rating, is equipped with a red rotary handle and a yellow front panel, and can be locked with padlocks (padlocks not included). It includes a 3-pole Vario switch body V0 with two possible attachments for additional modules. The surface-mounted housing features a screw fastening, two pre-formed entries for cable glands at the top and bottom, and a sealable cover. It complies with IEC 60947-4-1 and is Green Premium compliant (RoHS/REACh). The switch position is O I, and the front panel is yellow.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
131 mm
Width
90 mm
number of poles
3
Item number
9942372

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
VCF01GE
Release date
22.10.2018
Sales rank in Category Residual-current device
4 of 12992
External links
Manufacturer's site (de)

Colour

Colour
Red
Exact colour description
Red, Yellow

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
number of poles
3
Tripping characteristic
Sluggish ---
Rated current
16 A
Rated current
0.3 A
Rated voltage
690 V
voltage type
AC
Rated insulation voltage Ui
690 V
Residual current (rated differential current)
0.30 A
Protection type (IP code)
IP65

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
131 mm
Width
90 mm
Height
146 mm
Weight
470 g

Package dimensions

Length
10.70 cm
Width
14.60 cm
Height
11.20 cm
Weight
481 g

30-day right of return if unopened
24 Months Warranty (Bring-in)
