Schneider C6PFM

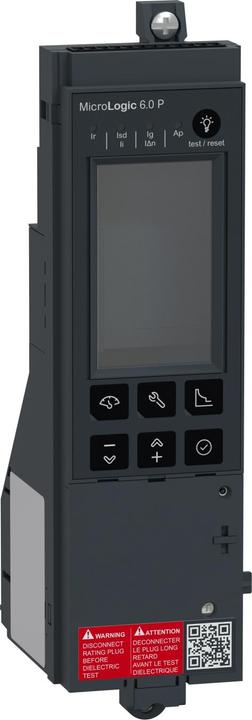

This new MicroLogic trip unit belongs to the new generation of the ComPacT NS630bN to NS1600 series. The new generation of ComPacT NS offers the same performance and features a new transparent front cover for visibility of accessories, as well as a new ergonomic toggle switch and optional LED trip status. The MicroLogic trip unit has a new design and a new color (dark gray). It is compatible with manually operated ComPacT NS circuit breakers in fixed installation. This control unit provides basic protection functions and is designed for the protection of circuits and loads. MicroLogic 6.0P is an electronic control unit that offers adjustable long-time overload protection (ANSI Code 49). It also provides adjustable short-time and instantaneous protection against short circuits (ANSI Codes 51 and 50). MicroLogic 6.0P features ground fault protection (ANSI Code 51N) for the return of residual or source ground. The performance of the control unit is determined by an additional long-time power plug, which must be ordered separately via the product selector. The MicroLogic P-type indicates overloads with an alarm LED and can display the trip cause through four additional LEDs. MicroLogic P is equipped with a digital LCD display that shows all measurements and events. The MicroLogic P-type calculates all electrical values (V, A, W, VAR, VA, Wh, VARh, VAh, Hz), power factors, and cos phi factors in real-time. The new generation ComPacT NS is part of Schneider Electric's EcoStruxure Power architecture. The new generation ComPacT NS is more sustainable with eco-friendly packaging and partnerships.
