Schneider ATVRU75N4

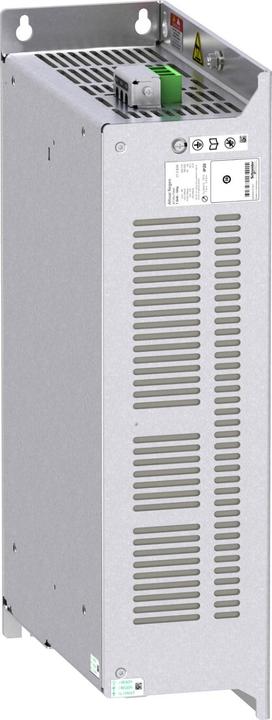

This regenerative unit is an option for variable speed drives in the Altivar series. It features a built-in EMC filter that complies with the IEC 61800-3 standard. Its rated power is 7.5 kW. The main function of the ATV generator is to provide a means for energy regeneration back into the AC supply. The protection class is IP20. The maximum operating temperature is 50 °C. It weighs 6 kg and has the following dimensions: 80 mm wide, 337 mm high, and 175 mm deep. It is designed for heavy braking applications such as machining, material handling, and lifting with easy adjustment. It complies with international standards IEC 61800-3 and IEC 61800-5-1. This regenerative unit is compatible with the ATV320, ATV340, and ATV900 drives. The product is delivered in packaging. It can be installed in both vertical and horizontal positions. It is fully integrated into Schneider Electric's EcoStruxure Machine via DTM. It is possible to configure, control, and diagnose ATV320 drives directly in the SoMachine and SoMove software using the same software component (DTM). It is environmentally friendly and meets guidelines such as RoHS, WEEE, etc., for environmental protection.
