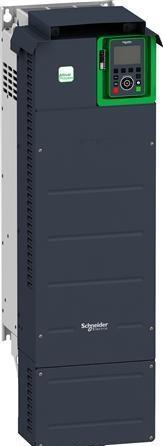

Schneider ATV650U55N4E

Ratings
BrandMore from Schneider
Delivered between Wed, 22.10. and Fri, 7.11.
free shipping

Product details

The ATV650U55N4E frequency inverter from Schneider is a powerful device designed for a wide range of applications in automation technology. With a power output of 5.5 kW (7.5 HP) and an output frequency range of 0.1 to 500 Hz, this inverter offers high flexibility and adaptability to different motors and operating conditions. The integrated safety feature Safe Torque Off (STO) ensures a high safety standard, while the IP55 protection class protects the device from dust and water. The ATV650U55N4E is equipped with various communication interfaces, including Modbus/TCP and serial Modbus interfaces, allowing for easy integration into existing systems. The option for expansion through optional I/O and communication cards provides additional customization options to meet specific requirements.

  • Integrated safety function STO (Safe Torque Off) SIL3
  • Versatile control for asynchronous and synchronous motors
  • Decentralized graphical operating terminal and integrated web server
  • Support for multiple communication protocols, including Modbus and PROFIBUS
  • High overload capacity of up to 150% for 60 seconds.

Key specifications

Mains voltage
380 V
Output frequency
50 - 60 Hz
Power
5.50 kW
Supports protocol
AS-Interface Safety at Work, ASI, Data highway, DeviceNet, EtherNet/IP, KNX, Lon, Modbus, Profibus, PROFINET CBA, PROFINET IO, PROFIsafe, SafetyBUS p, SERCOS, SUCONET, TCP/IP
Protection type (IP code)
IP55
Item number
31944113

General information

Manufacturer
Schneider
Category
Frequency converters
Manufacturer no.
ATV650U55N4E
Release date
12.10.2022

Frequency inverter properties

Mains voltage
380 V
Input phase number
3 x
Output phase number
3 x
Output frequency
50 - 60 Hz
Electric current output
12.70 A
Power
5.50 kW
Relative symmetrical mains frequency tolerance
5 %
Relative symmetrical mains voltage tolerance
10 %
Type of inverter
U-inverter
Supports protocol
AS-Interface Safety at Work, ASI, Data highway, DeviceNet, EtherNet/IP, KNX, Lon, Modbus, Profibus, PROFINET CBA, PROFINET IO, PROFIsafe, SafetyBUS p, SERCOS, SUCONET, TCP/IP
Protection type (IP code)
IP55

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece(s)

Product dimensions

Width
26.40 cm
Depth
30 cm
Height
67.80 cm
