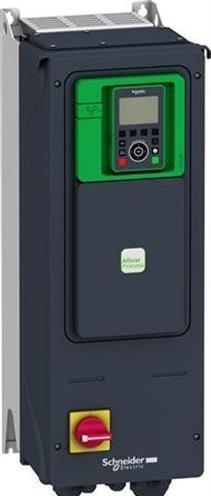

Schneider ATV650D15N4E

Ratings
BrandMore from Schneider
Delivered between Wed, 22.10. and Fri, 7.11.
free shipping

Product details

The ATV650D15N4E frequency inverter from Schneider is a highly advanced solution for controlling and protecting pumps and other electric drives. With a power rating of 15 kW and an output frequency range of 0.1 to 500 Hz, this device offers flexible adaptation to various applications. The inverter is equipped with an IP55 protection rating, making it ideal for use in demanding environments. The integrated safety function STO (Safe Torque Off) ensures a high safety standard, while the variety of communication protocols such as Modbus/TCP and PROFINET allows for easy integration into existing systems. The option to expand with additional I/O and communication cards provides further flexibility and adaptability.

  • Integrated safety function STO (Safe Torque Off) SIL3
  • Variety of control types for different motors
  • Decentralized graphical operating terminal and integrated web server
  • Support for multiple communication protocols, including Modbus and PROFINET
  • Overload capability of up to 150% for 60 seconds in high load mode.

Key specifications

Mains voltage
380 V
Output frequency
50 - 60 Hz
Power
15 kW
Supports protocol
AS-Interface Safety at Work, ASI, Data highway, DeviceNet, EtherNet/IP, KNX, Lon, Modbus, Profibus, PROFINET CBA, PROFINET IO, PROFIsafe, SafetyBUS p, SERCOS, SUCONET, TCP/IP
Protection type (IP code)
IP55
Item number
31948178

General information

Manufacturer
Schneider
Category
Frequency converters
Manufacturer no.
ATV650D15N4E
Release date
12.10.2022

Frequency inverter properties

Mains voltage
380 V
Input phase number
3 x
Output phase number
3 x
Output frequency
50 - 60 Hz
Electric current output
31.70 A
Power
15 kW
Relative symmetrical mains frequency tolerance
5 %
Relative symmetrical mains voltage tolerance
10 %
Type of inverter
U-inverter
Supports protocol
AS-Interface Safety at Work, ASI, Data highway, DeviceNet, EtherNet/IP, KNX, Lon, Modbus, Profibus, PROFINET CBA, PROFINET IO, PROFIsafe, SafetyBUS p, SERCOS, SUCONET, TCP/IP
Protection type (IP code)
IP55

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 frequency inverter

Product dimensions

Width
26.40 cm
Depth
33 cm
Height
67.80 cm
