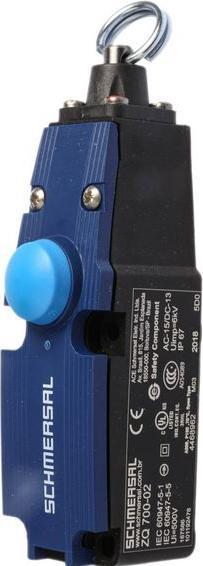

Schmersal ZQ700-02 Pull Wire Emergency Stop Switch
Delivered between Wed, 20.5. and Mon, 25.5.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
Distrelec CH
free shipping
Product details
Series: ZQ700
Reset button: Yes
Contact configuration: 2-pole, 2 NC contacts
Mounting position: Straight
Maximum cable span: 10 m
Maximum current: 4 A
Maximum AC voltage: 230 V
Maximum DC voltage: 24 V
Housing material: Thermoplastic
Number of cable entries: 1
Size of cable entries: M20 x 1.5
Minimum operating temperature: -25 °C
EN ISO 13849-1 pull wire switch - Series ZQ700. Thermoplastic housing with single-sided actuation for cable lengths up to 10 m. Features a release button, a position indicator, and a large wiring chamber that prevents rotation of the pull hook. Pull wire and break monitoring with pulling force for cable lengths up to 10 m. Includes 1 cable entry M20 x 1.5.
Switch + button type | Rope switch |
Width | 40.50 mm |
Item number | 9870781 |
Manufacturer | Schmersal |
Category | Buttons + Switches |
Manufacturer No. | ZQ 700-02 |
Release date | 8.10.2018 |
Material group | Plastic |
Material | Thermoplastic resin |
Switch + button type | Rope switch |
Operating mode | Pull cord |
Number of poles | 2x |
Nominal voltage | 230 V |
Protection type (IP code) | IP67 |
CO₂ emissions | 95.84 kg |
Climate contribution | CHF 2.28 |
Length | 160 mm |
Width | 40.50 mm |
Height | 50.90 mm |
Specifications may include unverified machine translations.
