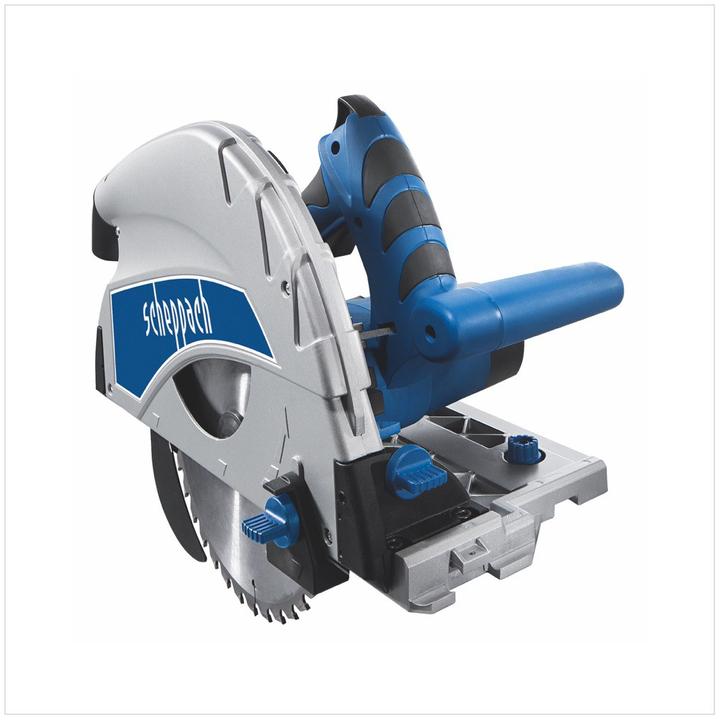

Scheppach Plunge saw PL75 incl. 1400mm guide rail

Ratings
BrandMore from Scheppach
Delivered between Mon, 15.9. and Wed, 17.9.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Plunge Saw PL75 Scheppach - 230V 50Hz 1600W including 1400mm rail & accessory set

Powerful, thanks to the 1600 W motor. The guide rail allows for parallel plunging of the saw blade and ensures smooth guidance of the saw. The 24-tooth saw blade provides a very clean cut with minimal tear-out on laminate. Efficient chip extraction due to the enclosed blade guard. A cutting depth of 75 mm facilitates cutting and adjustment work for most door sizes. Suitable for various materials such as solid wood, worktops, double-coated MDF boards, laminate, etc. Best cutting results even without a guide rail. Perfect shadow gaps of 16 mm. Precise cuts in worktops, solid wood, laminate, and plastic. Recommended handling and weight distribution by craftsmen. Includes 1400 mm guide rail, rail connector, and tilt protection.

Technical Data

Machine Length: 410.0
Machine Width: 235.0
Machine Height: 315.0
Voltage: 230 V
Frequency: 50 Hz
Saw Blade Diameter: 210.0
Saw Blade Bore Diameter: 30.0
Number of Teeth: 36
Inner Diameter of Dust Extraction Socket: 35.0
Outer Diameter of Dust Extraction Socket: 38.0

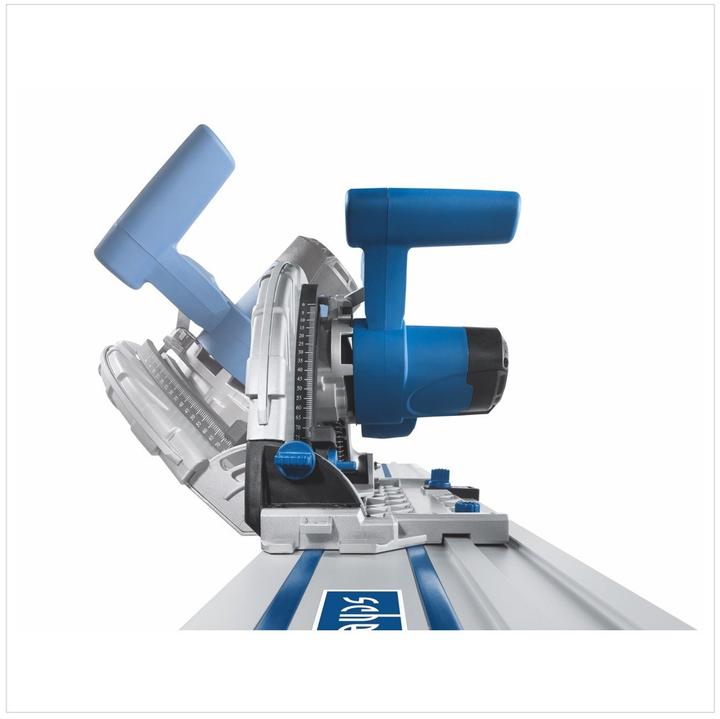

Max. Tilt Range: 45.0
Min. Swivel Range: 0.0
Shadow Gap (Distance Blade-Wall): 16.0
Cutting Height at 45°: 55.0
Cutting Depth 45° with Rail: 50.0
Cutting Height at 90°: 75.0
Cutting Depth 90° with Rail: 70.0.

Key specifications

Diameter saw blade
210 mm
Power supply
Electrical connection
Max. depth of cut at 90°
75 mm
Max. Depth of cut at 45
55 mm
Max. Idle speed
32000 rpm
Item number
23976758

General information

Manufacturer
Scheppach
Category
Hand-held circular saws
Manufacturer no.
5901804901-901
Release date
29.1.2023

Hand-held circular saw properties

Suitable for
Plastic, Slats
Mounting hole
30 mm
Diameter saw blade
210 mm

Depth of cut

Max. depth of cut at 90°
75 mm
Max. Depth of cut at 45
55 mm

Energy supply

Power supply
Electrical connection

Mains operation Features

Mains voltage
230 V
Cable length
3 m

Power

Power
1600 W
Max. Idle speed
32000 rpm
Sound power level (LWA)
100 dB
Sound pressure level (LpA)
95 dB

Scope of delivery

Scope of delivery
1 x anti-tipper, 1 x PL75 plunge-cut saw, 1 x plug for guide rails, 1 x recoil protection, 1x 1400mm guide rail, 2 x screw terminals

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
41 cm
Width
23.50 cm
Height
31.50 cm

30-day right of return
24 Months Warranty (Bring-in)
