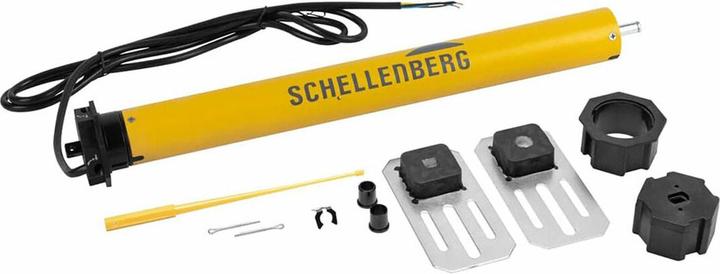

Schellenberg Tubular motor

The mechanical tube motor Standard with 15 Nm is designed for the motorization of a roller shutter with an area of up to 6.2 m² and a weight of 25 kg. It is intended for the Maxi roller shutter system and is directly installed in the octagonal shaft with a diameter of 60 mm. The end positions are mechanically adjusted after installation using an adjustment pin. The quiet-running tube motor Standard features a strong, low-wear brake as well as a maintenance-free motor with a high-quality gear unit with sintered gears. An extra-wide coupling compensates for an unevenly cut roller shutter shaft, and the special size of the adapter ensures optimal power transmission to the roller shutter shaft. A thermal overload protection feature switches off the motor in case of overheating, thus protecting the motor. A separate control unit is required to operate the tube motor Standard. Suitable options include Schellenberg roller shutter switches or Schellenberg timers. Controlling multiple roller shutter motors can be achieved by using a relay. For installation in the roller shutter box, an adjustable wall bracket is included in the delivery. The power supply is provided via a four-wire connection cable with a length of 2 m. With the tube motor Standard, you have the option to retrofit a wireless control at a later time. For this, you will need a Schellenberg wireless roller shutter switch or a Schellenberg wireless receiver module. The wireless control allows you to operate the motor remotely using a Schellenberg wireless remote control or a Schellenberg wireless timer. After retrofitting the wireless system, the tube motor Standard can be integrated into a compatible smart home system from Smart Friends or Schellenberg.
