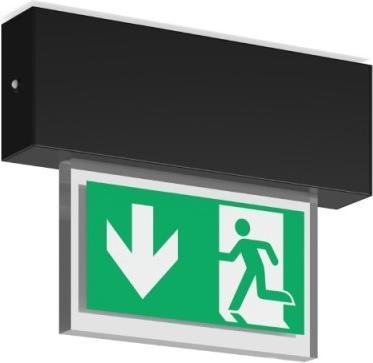

RZB LED emergency light

RZB LED emergency luminaire 671502.003.1.07

Manufacturer: RZB
Designation: LED emergency luminaire EB 3h, DALI
Type: 671502.003.1.07
Mounting type: Ceiling surface-mounting
Function: Escape route marking
With pictogram: Yes
Monitoring device: Monitoring module (centrally supplied system)
Switching type: Continuous/standby switching
With remote switch connection: No
With remote control: No
Power supply: Decentralised (single battery)
Battery type: NiMh
Illuminant: LED not replaceable
With illuminant: Yes
Suitable for number of illuminants: 1
Lampholder: Without
Number of lamp heads: 1
Material of housing: Aluminium
Housing colour: Black
Material of cover: Transparent plastic
Voltage type: AC
Rated voltage: 220..240 V
Control gear: ECG
Replaceable control gear: Yes
Light distributor: Without
Energy efficiency class of fixed lamp: Other
Constant luminous flux control: No
Protection class (IP): IP40
Protection class (NEMA): Other
Impact resistance: IK03
Protection class: I
Luminaire with limited surface temperature "D symbol": No
Rated ambient temperature according to IEC62722-2-1: 25 °C
Max. system wattage: 4.7 W
Colour rendering: 4.7 W
System wattage: 4.7 W
Colour temperature: 4000 K
Detection distance: 14 m
Rated operating time: 3 h
Width: 40 mm
Height/depth: 180 mm
Length: 233 mm
Type of wiring: Termination
Number of poles: 5
Conductor cross-section: 1.5 mm²
Type of connection: Screw connection

Further details: Luminaire for escape route marking. Housing extruded aluminium profile, anodised or powder-coated. Display lens highly transparent plastic with escape sign on one side/two sides. Integrated operating devices. Single-battery system with automatic self-test and feedback via DALI bus exclusively to the RZB DALI monitoring system. Please state symbol number for escape sign when ordering!.
