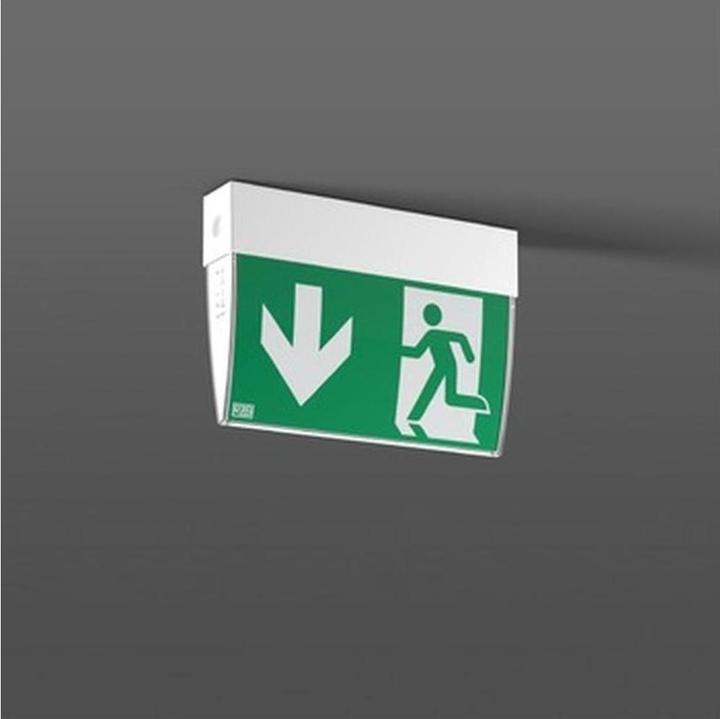

RZB LED emergency light

RZB LED emergency light 672400.002

Manufacturer: RZB
Designation: LED emergency light 3h
Type: 672400.002
Mounting type: Wall-mounted/Ceiling-mounted
Function: Escape route marking
Suitable for marking type: Insert sheet/plate
With pictogram: Yes
Monitoring device: Automatic self-test
Switching type: Continuous/Standby
With remote switch connection: No
Power supply: Decentralized (single battery)
Battery type: NiMh
Illuminant: LED (not replaceable)
With illuminant: No
Suitable for number of illuminants: 1
Socket: Without
Number of lamp heads: 1
Housing material: Plastic
Housing color: White
Cover material: Transparent plastic
Voltage type: AC
Nominal voltage: 220-240 V
Control gear: Electronic ballast
Light distributor: Without
Protection class (IP): IP54
Protection class (NEMA): Other
Impact resistance: IK03
Protection class: II
Luminaire with limited surface temperature "D-sign": No
Rated ambient temperature according to IEC62722-2-1: 25 °C
Max. system wattage: 4 W
Color temperature: 4000 K
Detection distance: 24 m
Rated operating time: 3 h
Width: 48 mm
Height/depth: 177 mm
Length: 255 mm
Type of wiring: Termination
Number of poles: 2
Conductor cross-section: 1.5 mm²
Connection type: Plug-in connection

Universal plastic luminaire for escape route marking. Housing made of impact-resistant polycarbonate. Four pictogram foils and one white foil for insertion into the transparent cover are enclosed. Mounting bracket for wall mounting and two sealing screws are included. Single battery system with automatic self-test.
