RZB 672528.003.89

RZB LED emergency luminaire 672528.003.89
Manufacturer: RZB
Designation: LED emergency luminaire ZB, 740, black
Type: 672528.003.89
Mounting type: Surface-mounted/recessed
Function: Escape route lighting
Suitable for labelling type: Other
With pictogram: No
Monitoring device: Monitoring module (centrally supplied system)
Switching type: Standby mode
With remote switch connection: No
With remote control: No
Power supply: Central (central battery)
Battery type: Other
Light source: LED not replaceable
Suitable for number of light sources: 1
Lampholder: None
Number of luminaire heads: 1
Housing material: Plastic
Housing colour: Black
Cover material: Other
Voltage type: AC/DC
Rated voltage: 230 V
LED rated current at constant current: 23 mA
Control gear: ECG
Replaceable control gear: Yes
Light distributor: None
Max. number of luminaires Circuit-breaker B16: 40
Max. number of luminaires Circuit-breaker C16: 40
Constant luminous flux control: No
Protection class (IP): IP20
Protection class (NEMA): Other
Impact resistance: IK06
Protection class: II
Luminaire with limited surface temperature "D symbol": No
Rated ambient temperature to IEC62722-2-1: 25 °C
Luminous flux in standby mode: 310 lm
Colour temperature: 4000 K
Power factor: 0.58
Height/depth: 2 mm
Outer diameter: 135 mm
Installation diameter: 116 mm
Wiring type: Suitable for through-wiring
Number of poles: 2
Conductor cross-section: 2.5 mm²
Connection type: Push-in connection

RZB LED safety light 672528.003.89: more details

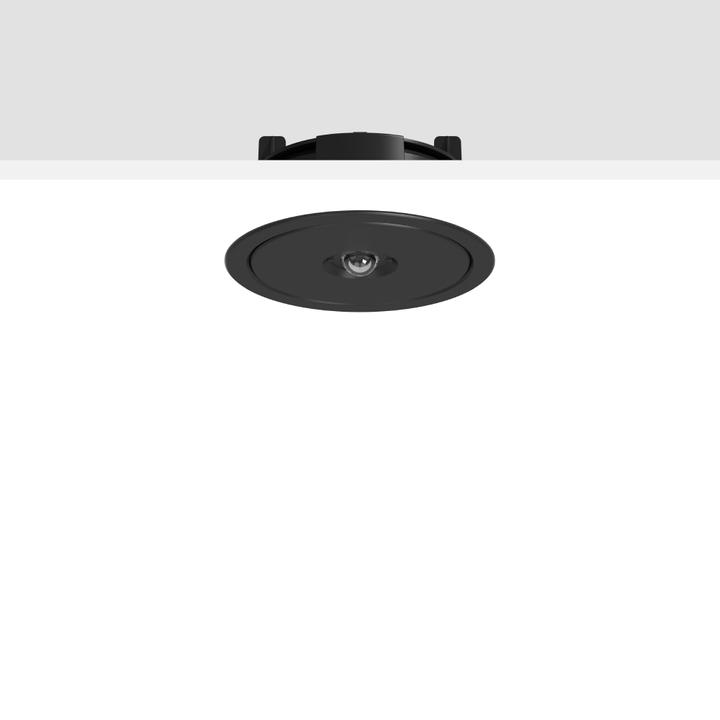

Round recessed downlight for escape route lighting. Plastic housing (polycarbonate) with plastic lenses for area and escape route lighting. Suitable for ceiling surface-mounting and recessed ceiling installation. Integrated control gear for connection to safety power supply. With AC-Control monitoring module for Luxifair central battery systems.
