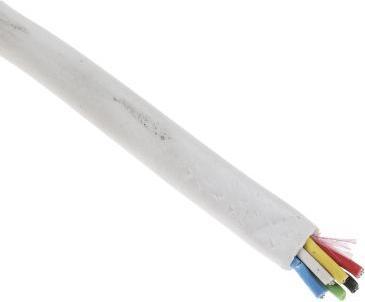

RS PRO White 6 core signal cable,7/0.2mm 100m

100 m
CHF1.52/1m
Ratings
BrandMore from RS PRO
Delivered between Wed, 21.1. and Mon, 26.1.
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

Number of cores: 6
Outer diameter: 3.9 mm
Conductor cross section: 0.19 mm²
Roll length: 100 m
Sheath material: Polyvinyl chloride (PVC)
Stranded wires: 7/0.19 mm²
Rated current: 1 A per wire
Operating temperature min: -50°C
Operating temperature max: +70°C
Operating voltage: 50 V
Conductor resistance: 98.6 Ω

BS EN 50363-4-1:2005, BS 7655-4.2:2000, Grade Type 6. RS burglar alarm signal cables. The series of RS burglar alarm signal cables is made of basic materials of the highest quality. It features 7 strands of tinned soft copper conductor, Grade 1 PVC insulation, lead and tin-free white PVC sheathing, and is easy to insulate and flexible. Available in 100 m and 500 m lengths.

Key specifications

Exact colour description
White
cable type
Installation management
Cable length
100 m
Cable cross section
0.19 mm²
Nominal voltage U
50 V

General information

Item number
10232307
Manufacturer
RS PRO
Category
Cable conductors
Manufacturer no.
8200182
Release date
12.12.2018
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
White

Material

Material group
Plastic
Material
PVC
Material of the isolation
PVC

Cable properties

cable type
Installation management
Cable cross section
0.19 mm²
Number of cores
6x
Nominal voltage U
50 V
Nominal current
1 A
Contact material
Copper

Origin

Country of origin
United Kingdom

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Cable length
100 m
Outside diameter
4.90 mm

30-day right of return
24 Months Warranty (Bring-in)
