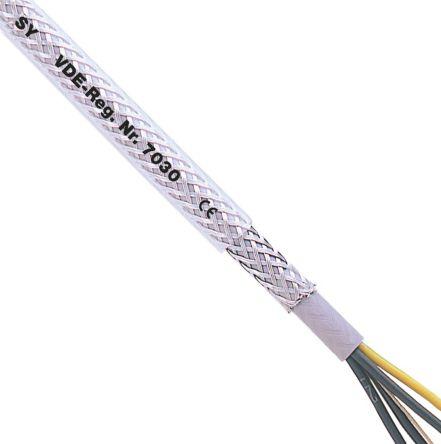

RS PRO SY 5 core 4.0mm control cable 50m

Number of cores: 5
Conductor cross section: 4 mm²
Outer diameter: 14.1 mm
Rated current: 34 A
Operating temperature min: -40°C
Operating temperature max: +80°C
Operating voltage: 300/500 V
Core strands: 56/0.30 mm
Sheath material: Polyvinyl chloride (PVC)
Jacket colour: Transparent
Ground conductor: Yes
Conductor resistance: 4.95 Ω/km

This cable complies with ECD 73/23/EEC (Low Voltage Directive). SY control cable, RS. SY cables are numerically coded control and connection cables for flexible and fixed installation with medium mechanical stress. The SY cable can be used in dry, humid, and wet environments. UV protection is also included when installed outdoors and within the temperature range. These cables are usually resistant to acid, caustic solutions, and certain oils at room temperature. The SY cable can also be used to supply and connect machine tool controls, treadmill control units, production lines, measurement, control, and computer units. These cables are ideal for free movement without tensile loads or forced movement. Galvanized steel wire braid extends the mechanical protection. Properties and advantages.
