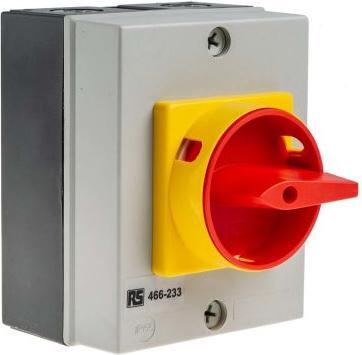

RS PRO Switch disconnector plastic 25A 4-pole

Number of poles: 4
Max current: 25 A
Mounting type: DIN rail
Power: 11 kW
Protection class: IP65
Padlock option: Yes
Operating voltage: 690 Vac
Electrical phases: 3
Switching capacity: 5 kA
Length: 125 mm
Width: 100 mm
Depth: 70 mm
Handle color: Red

EN60947. Disconnect switch with housing. High-quality series of RS Pro isolator disconnect switches with housing for use with low-voltage switchgear for power distribution, load isolation, and motor start/stop. The RS Pro series is available in 3-, 4-, and 6-pole versions and has a power rating of up to 90 kW. Due to the locking cover, the switch can only be removed in the off position. Easy access and removal of the switch. Lockable handles. Flame-retardant material. Maximum voltage 750 V. ABS, metal casing, versions in aluminum die-cast and stainless steel available.
