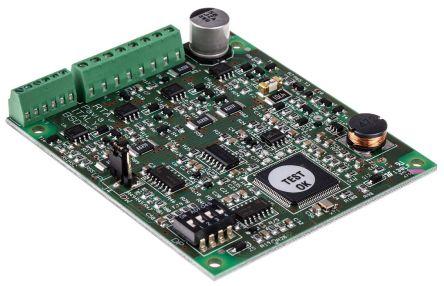

Rs Pro Stepper Driver, Bipolar, Microstep 0.7A

For motor type: Bipolar
Rated current: 2.2 A
Operating voltage: 48 V
Board supply voltage: 24 to 48 V
Total length: 78 mm
Total width: 68 mm
Total depth: 21 mm

Microstepping stepper motor drives. Series of stepper motor drives for microstepping. Fully digital microstep drive with adaptive microsteps up to 3299 steps per revolution. Intelligent management of the current flow with a sophisticated control system. Automatic current reduction when the motor stops. Integrated protective devices:

• Undervoltage and short-circuit at motor outputs
• Undervoltage and overvoltage, short-circuit at motor outputs, overtemperature version "Open design"

Plug connector in screw version.
