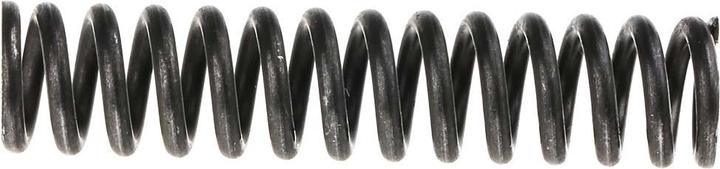

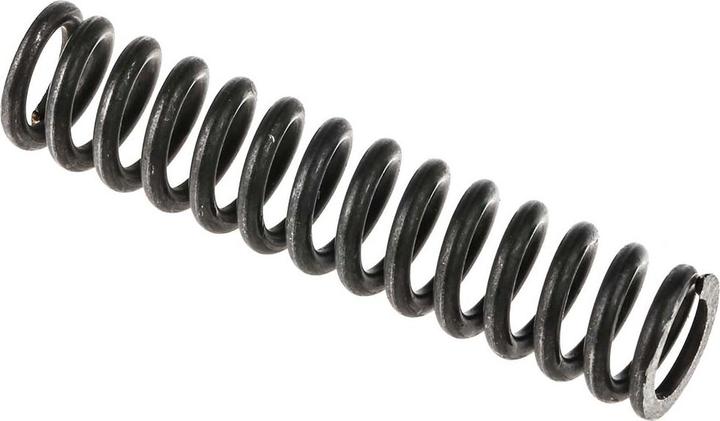

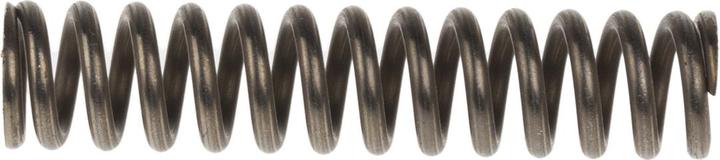

RS PRO Steel comp spring,45Lx9.6mm dia
Minimum order 3Supplied by
Distrelec CH
Free shipping starting at 50.–
Outer diameter: 9.6 mm
Wire diameter: 1.6 mm
Free length: 45 mm
Minimum working length: 24.8 mm
Load at minimum working length: 211.82 N
Material: Steel alloy
Spring hardness: 10.4 N/mm
Ends: square/grinded
The load at minimum working length is the required load to compress the spring to this length. All dimensions and forces according to DIN 2095 (level 2). Compression spring made from wire. The ends of wires up to 0.8 mm are square and not ground. The ends of wires from 1.00 mm are square and ground. Manufactured with right-hand winding.
Metal type | Steel |
Screw Accessories Type | Compressing spring |
Item number | 9900123 |
Manufacturer | RS PRO |
Category | Screw accessories |
Manufacturer no. | 121191 |
Release date | 16.10.2018 |
Minimum order | 3 |
Material group | Metal |
Metal type | Steel |
Material | Steel |
Screw Accessories Type | Compressing spring |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Length | 45 mm |
Outside diameter | 9.60 mm |
Length | 10.90 cm |
Width | 8.20 cm |
Height | 1.80 cm |
Weight | 60 g |
