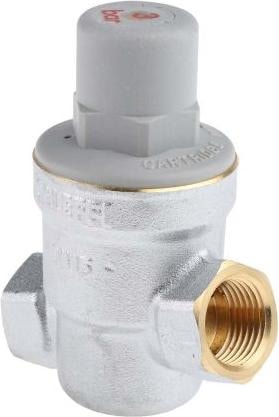

RS PRO Pressure reducing valve,1/2in BSPP F
More than 10 pieces in stock at third-party supplier
Product details
Connection: 1/2" screw fitting, internal thread
Minimum outlet pressure: 1 bar
Maximum outlet pressure: 6 bar
Housing material: chrome-plated brass
Maximum flow rate: 2 L/s
Gender: socket
Connection size: 1/2 inch
Thread fitting type: screw pin
Outlet pressure range: 1 → 6 bar
To facilitate maintenance, it is recommended to install shut-off valves before and after the pressure reducing valve. No manometer connection. Pressure reducing valve – BSP internal thread. To avoid noise in long pipelines and equipment, it is advisable to keep the flow rate below two liters per second. Suitable for use with water or compressed air. Can be installed in any orientation and maintained on-site. One-piece acetal resin cartridge. Pre-set pressure. Max. operating temperature: 40 °C.
Exact colour description | Chrome-plated brass |
Material | Brass, Chrome-plated brass |
Sanitary valve type | Pressure reducing valve |
Connection thread | 1/2" |
Length | 102 mm |
Diameter | 50.80 mm |
Item number | 10317029 |
Manufacturer | RS PRO |
Category | Valve |
Manufacturer No. | 761345 |
Release date | 15.1.2019 |
Sales rank in Category Valve | 38 of 3213 |
Exact colour description | Chrome-plated brass |
Colour | Silver |
Material | Brass, Chrome-plated brass |
Material group | Metal |
Sanitary valve type | Pressure reducing valve |
Connection thread | 1/2" |
Max. Operating pressure | 6 bar |
Country of origin | Italy |
Manufacturer commitment | SBTi |
CO₂ emissions | 9.84 kg |
Climate contribution | CHF 0.24 |
Length | 102 mm |
Width | 68 mm |
Diameter | 50.80 mm |
Height | 54 mm |
Length | 10.40 cm |
Width | 7.20 cm |
Height | 5.50 cm |
Weight | 360 g |
