Rs Pro Insulation & Continuity Tester

Tester Type: Insulation Tester
Minimum Test Voltage: 125 V
Maximum Test Voltage: 1000 V
Maximum Insulation Resistance: 4 GΩ
Display Type: LCD
Test Current: 1 mA
Minimum Operating Temperature: 0 °C
Maximum Operating Temperature: +40 °C
Power Supply: Battery
Safety Level: Cat. III
Safety Voltage: 1000 V
Safety Category: CAT III 1000 V
Height: 200 mm

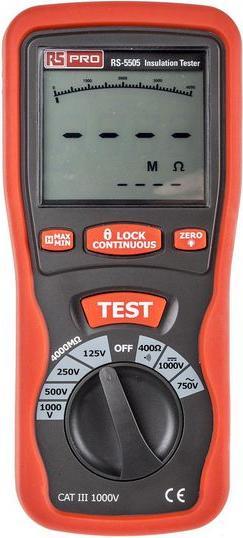

The RS5505 is a digital insulation and continuity tester with a high price-performance ratio according to IEC 10101, Cat. III for measurements in building installations. It features a compact, lightweight design for continuity and mobility. It is equipped with a double-molded plastic housing that provides maximum protection against harsh environments. The package also includes test leads, six 1.5 V AA batteries, a plastic carrying case, and a user manual.

Features and Benefits:

• Large dual display with backlight
• Live wire detection prevents the insulation test if a voltage of 30 V is detected (for additional user protection)
• AC (40–400 Hz) 200 mA short-circuit current continuity range
• Test memory function for easy operation
• Overrange indication
• "Low Battery" display
• Double-molded plastic housing
• Weight: approx. 700 g including battery
• Dimensions: 200 x 92 x 50 mm.
