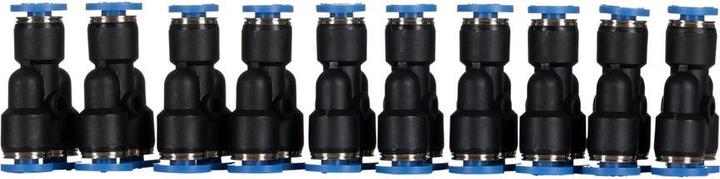

RS PRO Equal Y Fitting, 10 mm

Pipe connection A = Push-in installation 10 mm
Pipe connection B = Push-in installation 10 mm
Pipe connection C = Push-in installation 10 mm
Housing material = Polyoxymethylene
Surface = Nickel-plated
Max operating pressure = 10 bar
Pipe connection C - Type = Pressure
Pipe connection B - Type = Pressure
Max operating temperature = +60°C
Pipe connection A - Type = Pressure
Min operating temperature = 0°C
Pipe connection A - Pipe size = 10 mm
Pipe connection C - Pipe size = 10 mm
Connection design = Pipe-to-pipe

RS Pro One-Touch Fittings – metric system. Features and benefits: One-touch push-fit for connecting configurations allows for immediate hose connection. All models are useful for line installation in tight spaces due to the hexagonal wrench. Instant disconnection of the robust technical plastic (POM) sleeve by pressing the sleeve and then easily removing the pipe from the fitting. Fittings are treated with Teflon or feature an O-ring on the thread. Nickel-plated brass housing provides protection against contamination for extended service life. Technical data: Suitable for use with air. Operating pressure range: 0-150 psi. Negative pressure: –29.5 in Hg. Operating temperature range: 32 °F to 140 °F. Product application information: Usable in pneumatic piping and a variety of applications.
